Bronze Globe Bolted Bonnet Valve - DIN PN16
Bronze Globe Bolted Bonnet Valve - DIN PN16
SKU:VAL-895843
Reliable PN 16 Bronze Globe Bolted Bonnet Valve for precise fluid control in industrial settings.
Regular price
$899.99
Regular price
Sale price
$899.99
Unit price
per
Initiate Order
Bronze Globe Bolted Bonnet Valve - DIN PN16
$899.99
Quantity: 1
Claim Your Seller Account
Bronze Globe Bolted Bonnet Valve - DIN PN16
$899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

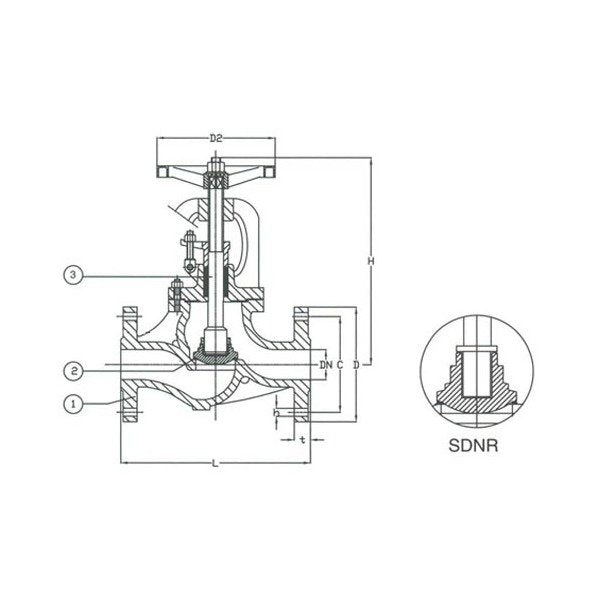

The PN 16 Bronze Globe Bolted Bonnet SDNR Valve is a reliable solution for industrial fluid control. Constructed from durable bronze with gunmetal components, this valve ensures long-term performance and corrosion resistance. With a size of 175, hydraulic inspections of 25 for the body and 16 for the seat, precise dimensions according to ISO and DIN standards, and a weight of 85.0 kg, this valve meets the stringent requirements of institutional buyers. The handwheel actuator and flanged connection further enhance its usability and compatibility. Trust in this valve for efficient and compliant fluid handling.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze
Specifications C
270 mm
Specifications Connection
Flanged Drilled
Specifications D
315 mm
Specifications D2
300 mm
Specifications Disc Material
Bronze
Specifications H
550 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications L
550 mm
Specifications Number Of Holes
8
Specifications Seat Material
Bronze
Specifications Size
175
Specifications Stem Material
Brass
Specifications T
24 mm
Specifications Weight
85.0 kg
