Bronze Globe Bolted Bonnet Valve - PN 16, DIN Certified

Name: Bronze Globe Bolted Bonnet Valve - PN 16, DIN Certified
Brand: World Wide Metric, Inc.
SKU: VAL-444b05
Price: 189.99 USD
Availability: OutOfStock

SKU:VAL-444b05

Premium PN 16 Bronze Globe Valve, DIN Certified, Superior Hydraulic Performance

$189.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

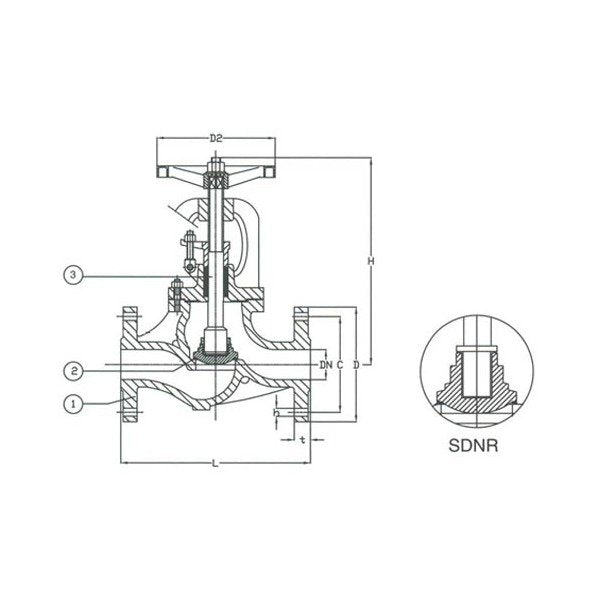

The PN 16 Bronze Globe Bolted Bonnet SDNR Valve is meticulously crafted with gunmetal body, disc, and seat, along with brass stem, ensuring durability and performance. Compliant with DIN standards, this valve features a sturdy construction, optimal dimensions, and flanged connection for seamless installation. With ISO5752 Series 1 face to face measurements and DIN2501-PN16 flanges, it is suitable for diverse industrial applications, providing reliable hydraulic performance and easy operation.

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Bronze

Specifications C

125 mm

Specifications Connection

Flanged Drilled

Specifications D

165 mm

Specifications D2

150 mm

Specifications Disc Material

Bronze

Specifications H

260 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L

230 mm

Specifications Number Of Holes

Specifications Seat Material

Bronze

Specifications Size

050

Specifications Stem Material

Brass

Specifications T

18 mm

Specifications Weight

12.0 kg
