Bronze Globe IB412 Valve - 300 lb SWP, 600 lb WOG
Bronze Globe IB412 Valve - 300 lb SWP, 600 lb WOG
SKU:VAL-8884f7
Reliable Bronze Globe IB412 Valve for general service applications, featuring 300 lb SWP, 600 lb WOG ratings, and MSS SP-80 Type 1, Class 300 compliance.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Bronze Globe IB412 Valve - 300 lb SWP, 600 lb WOG
$149.99
Quantity: 1
Claim Your Seller Account
Bronze Globe IB412 Valve - 300 lb SWP, 600 lb WOG
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

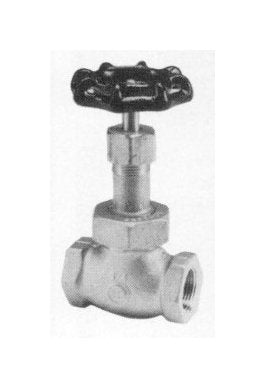

The Bronze Globe IB412 Valve is a reliable general service valve designed for durability and performance. With 300 lb. SWP and 600 lb. WOG ratings, this valve is suitable for a wide range of applications. It features a regrinding disc, union bonnet, gland packing, and threaded ends for easy installation. Conforming to MSS SP-80 Type 1, Class 300 standards, this valve ensures quality and efficiency. The bronze construction of the body, bonnet, disc, stem, and other components guarantees longevity and resistance to corrosion, making it an excellent choice for industrial and institutional settings.
Product Specifications
Material List 0

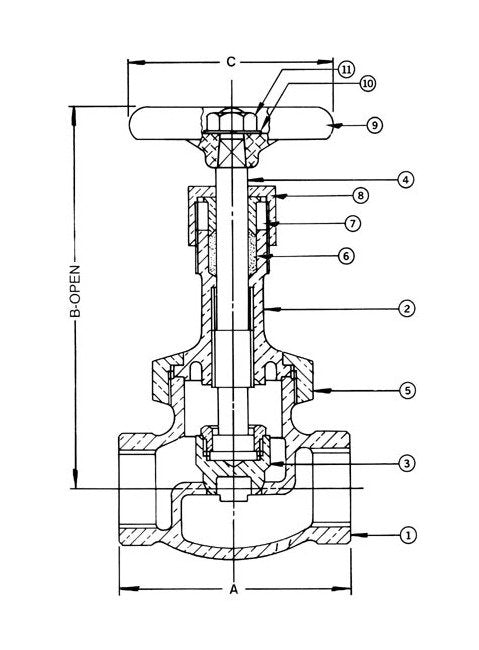

No. Part Material Specification 1 Body Bronze ASTM B 61 2 Bonnet Bronze ASTM B 61 3 Disc Bronze ASTM B 61 4 Stem Bronze ASTM B 61 5 Union Bonnet Nut Bronze ASTM B 61 6 Packing Non-Asbestos Commercial 7 Gland Brass ASTM B 124 C37700 8 Packing Nut Brass ASTM B 16 9 Handwheel Mall. Iron Commercial 10 Identification Plate Aluminum Commercial 11 Handwheel Nut Brass Commercial 12 Disc Ring Bronze Commercial
Specifications Dimension A
52.40 mm
Specifications Dimension B
101.60 mm
Specifications Dimension C
57.15 mm
Specifications Material
Bronze
Specifications Size
9.53 mm
