Bronze Globe IB412 Valve - Industrial Grade
Bronze Globe IB412 Valve - Industrial Grade
SKU:VAL-d5b192
Reliable Bronze Globe IB412 Valve for industrial applications with 300 lb. SWP. Conforms to MSS SP-80 Type 1 Class 300 standards.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Bronze Globe IB412 Valve - Industrial Grade
$99.99
Quantity: 1
Claim Your Seller Account
Bronze Globe IB412 Valve - Industrial Grade
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

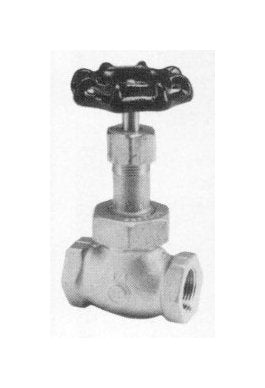

The Bronze Globe IB412 Valve is a high-quality valve designed for industrial applications. With a 300 lb. SWP and 600 lb. WOG capacity, this valve is suitable for general service use. Its bronze construction ensures durability and reliability, with features like a regrinding disc, union bonnet, and gland packing. Conforming to MSS SP-80 Type 1 Class 300 standards, this valve offers threaded ends for easy installation. The integral disc and stem design on smaller sizes enhance efficiency, making it a dependable choice for various industrial settings.
Product Specifications

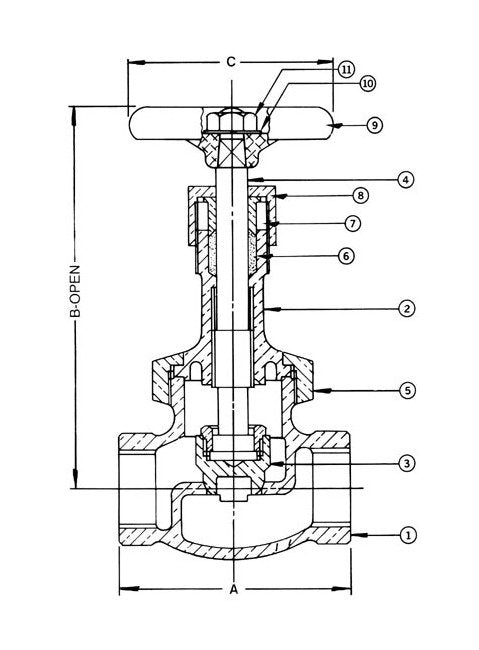

Material List 0
No. Part Material Specification 1 Body Bronze ASTM B 61 2 Bonnet Bronze ASTM B 61 3 Disc Bronze ASTM B 61 4 Stem Bronze ASTM B 61 5 Union Bonnet Nut Bronze ASTM B 61 6 Packing Non-Asbestos Commercial 7 Gland Brass ASTM B 124 C37700 8 Packing Nut Brass ASTM B 16 9 Handwheel Mall. Iron Commercial 10 Identification Plate Aluminum Commercial 11 Handwheel Nut Brass Commercial 12 Disc Ring Bronze Commercial
Specifications Dimension A
95.25 mm
Specifications Dimension B
161.93 mm
Specifications Dimension C
82.55 mm
Specifications Material
Bronze
Specifications Size
25.40 mm
