Bronze Globe IB413T Valve, 50.80mm
Bronze Globe IB413T Valve, 50.80mm
SKU:VAL-76f61c
High-performance Bronze Globe IB413T Valve for heavy-duty service, precise dimensions, Teflon Disc, and ASTM B 62 Bronze construction.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Bronze Globe IB413T Valve, 50.80mm
$129.99
Quantity: 1
Claim Your Seller Account
Bronze Globe IB413T Valve, 50.80mm
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience exceptional durability and performance with the Bronze Globe IB413T Valve. Crafted with ASTM B 62 Bronze materials, Teflon Disc, and conforming to MSS SP-80 Type 2 Class 150 standards, this valve ensures reliable operation in heavy-duty service applications. Featuring union bonnet, threaded ends, and precise dimensions of 146.05mm (A), 225.43mm (B), and 120.65mm (C), it guarantees optimal flow control and longevity.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Material List 0

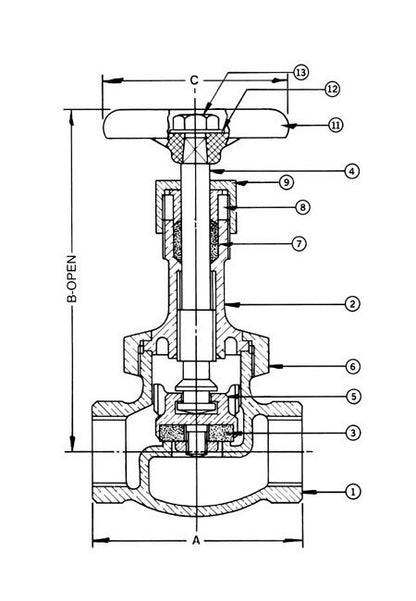

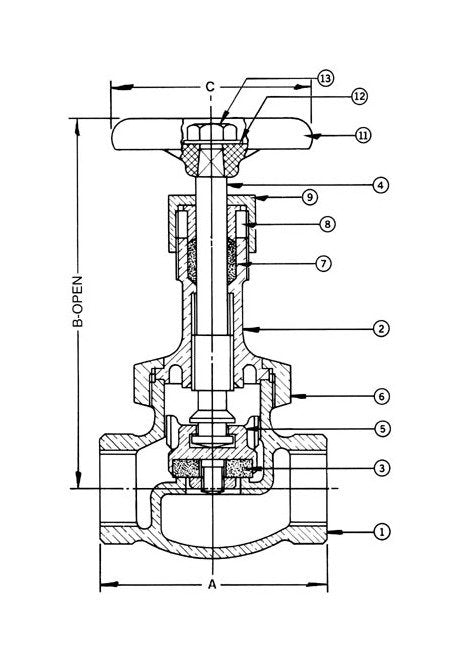

No. Part Material Specification 1 Body Bronze ASTM B 62 2 Bonnet Bronze ASTM B 62 3 Disc Teflon 4 Stem Bronze ASTM B 62 5 Disc Holder Bronze ASTM B 161/4" to 3/4" ASTM B 621" and 3" Incl. 6 Union Bonnet Nut Bronze ASTM B 62 7 Packing Non-Asbestos Commercial 8 Gland Brass ASTM B 124 C37700 9 Packing Nut Brass ASTM B 283 C37700 10 Disc Nut Bronze Commercial 11 Handwheel Mall. Iron Commercial 12 Identification Plate Aluminum Commercial 13 Handwheel Nut Brass Commercial
Specifications Dimension A
146.05 mm
Specifications Dimension B
225.43 mm
Specifications Dimension C
120.65 mm
Specifications Material
Bronze
Specifications Size
50.80 mm
