Bronze Globe IB413T Valve, Size 3.18mm
Bronze Globe IB413T Valve, Size 3.18mm
SKU:VAL-004bfa
High-performance Bronze Globe Valve for industrial use. Teflon disc, union bonnet, threaded ends, and compliance with MSS SP-80 standards.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Bronze Globe IB413T Valve, Size 3.18mm
$129.99
Quantity: 1
Claim Your Seller Account
Bronze Globe IB413T Valve, Size 3.18mm
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Bronze Globe IB413T Valve is designed for heavy-duty service, featuring a Teflon disc and union bonnet for reliable performance. With threaded ends and conforming to MSS SP-80 Type 2, Class 150 standards, this valve ensures durability and precision in industrial applications. Crafted from high-quality bronze and other premium materials, this valve is ideal for enhanced control and seamless operation.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Material List 0

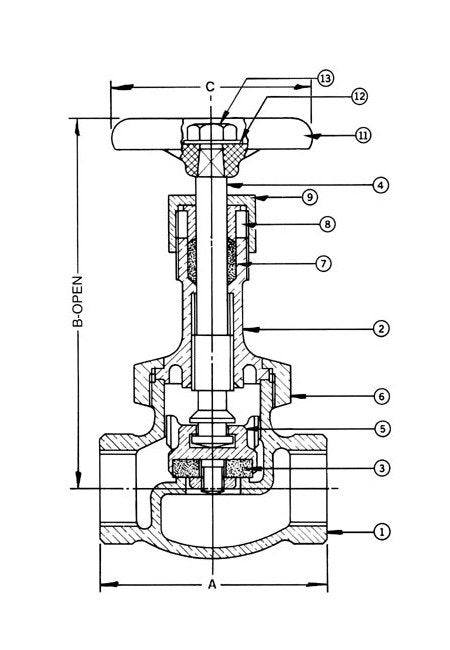

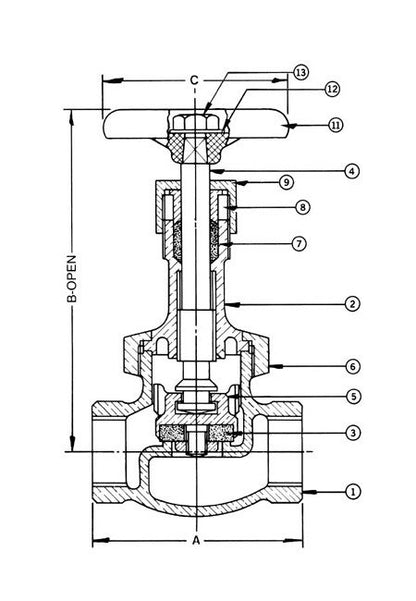

No. Part Material Specification 1 Body Bronze ASTM B 62 2 Bonnet Bronze ASTM B 62 3 Disc Teflon 4 Stem Bronze ASTM B 62 5 Disc Holder Bronze ASTM B 161/4" to 3/4" ASTM B 621" and 3" Incl. 6 Union Bonnet Nut Bronze ASTM B 62 7 Packing Non-Asbestos Commercial 8 Gland Brass ASTM B 124 C37700 9 Packing Nut Brass ASTM B 283 C37700 10 Disc Nut Bronze Commercial 11 Handwheel Mall. Iron Commercial 12 Identification Plate Aluminum Commercial 13 Handwheel Nut Brass Commercial
Specifications Dimension A
52.40 mm
Specifications Dimension B
100.03 mm
Specifications Dimension C
50.80 mm
Specifications Material
Bronze
Specifications Size
3.18 mm
