Bronze Globe Union Bonnet Valve - PN 16, DIN Certified

Name: Bronze Globe Union Bonnet Valve - PN 16, DIN Certified
Brand: World Wide Metric, Inc.
SKU: VAL-94eb44
Price: 299.99 USD
Availability: OutOfStock

SKU:VAL-94eb44

Durable Bronze Globe Union Bonnet Valve with DIN certification for reliable industrial performance.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

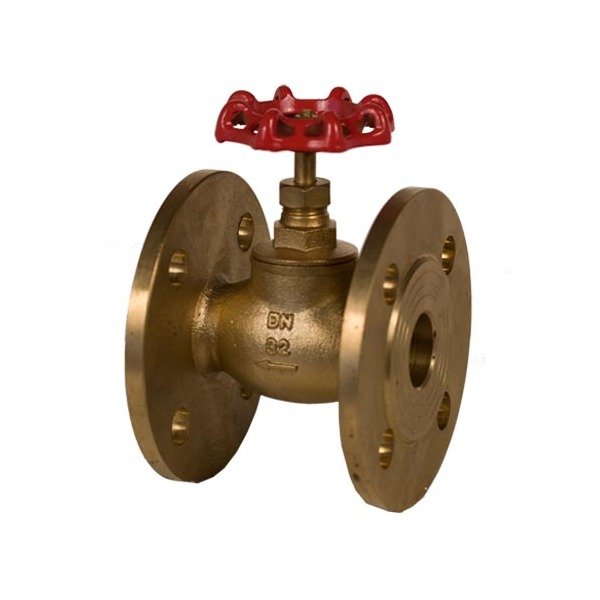

The Bronze Globe Union Bonnet Valve, PN 16, is a high-quality valve suitable for a range of applications. Constructed with bronze body, seat, and disc materials and a brass stem, this valve meets DIN standards ensuring reliability and durability. Features include a handwheel actuator and flanged connection, making it easy to operate and integrate into existing systems. With precise hydraulic inspections and compliance with DIN2501-PN16, this valve ensures efficient performance and longevity in industrial settings.

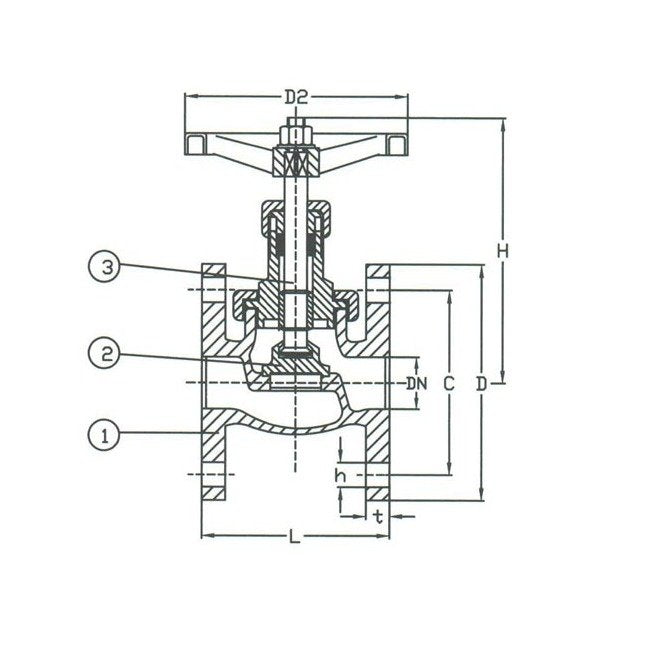

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Bronze

Specifications C

145 mm

Specifications Connection

Flanged Drilled

Specifications D

185 mm

Specifications D2

160 mm

Specifications Disc Material

Bronze

Specifications H

225 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L

180 mm

Specifications Number Of Holes

Specifications Seat Material

Bronze

Specifications Size

065

Specifications Stem Material

Brass

Specifications T

20 mm

Specifications Weight

11.6 kg
