Bronze Globe Union Bonnet Valve - PN 16 | DIN2501-PN16
Bronze Globe Union Bonnet Valve - PN 16 | DIN2501-PN16
SKU:VAL-0b3bb9
Premium PN 16 Bronze Globe Union Bonnet Valve with DIN2501-PN16 flanges, ideal for industrial applications.
Regular price
$189.99
Regular price
Sale price
$189.99
Unit price
per
Initiate Order
Bronze Globe Union Bonnet Valve - PN 16 | DIN2501-PN16
$189.99
Quantity: 1
Claim Your Seller Account
Bronze Globe Union Bonnet Valve - PN 16 | DIN2501-PN16
$189.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

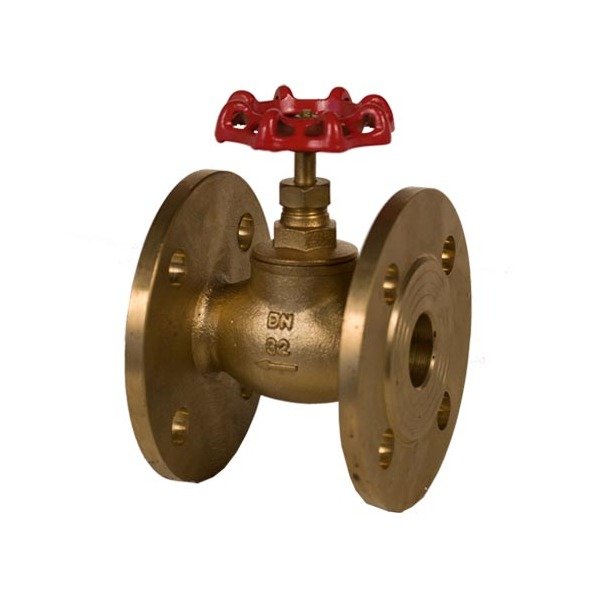

The PN 16 Bronze Globe Union Bonnet Valve is expertly crafted with a gunmetal body, seat, and disc, along with a brass stem for durability and reliability. Designed as per DIN standards, this valve ensures precise hydraulic inspections, meeting institutional procurement requirements seamlessly. Its flanges according to DIN2501-PN16 guarantee secure connections, making it ideal for industrial applications demanding top-tier performance and longevity.

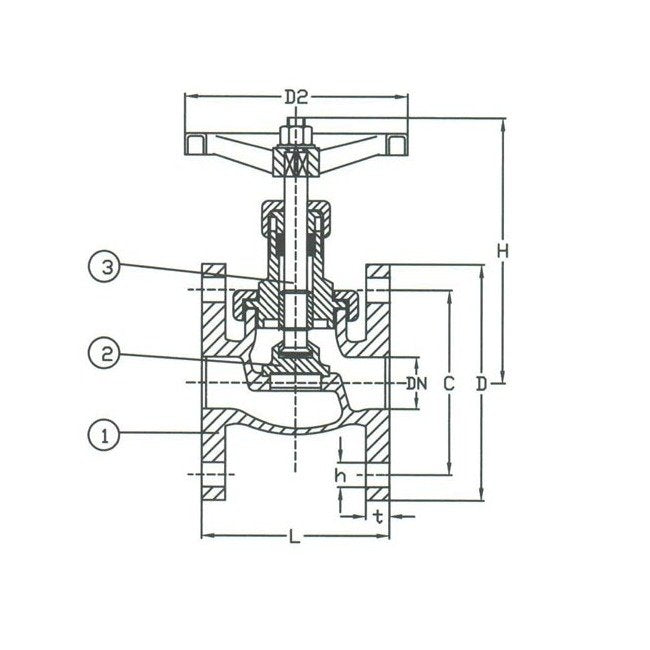

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze
Specifications C
125 mm
Specifications Connection
Flanged Drilled
Specifications D
165 mm
Specifications D2
120 mm
Specifications Disc Material
Bronze
Specifications H
195 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications L
140 mm
Specifications Number Of Holes
4
Specifications Seat Material
Bronze
Specifications Size
050
Specifications Stem Material
Brass
Specifications T
20 mm
Specifications Weight
8.0 kg
