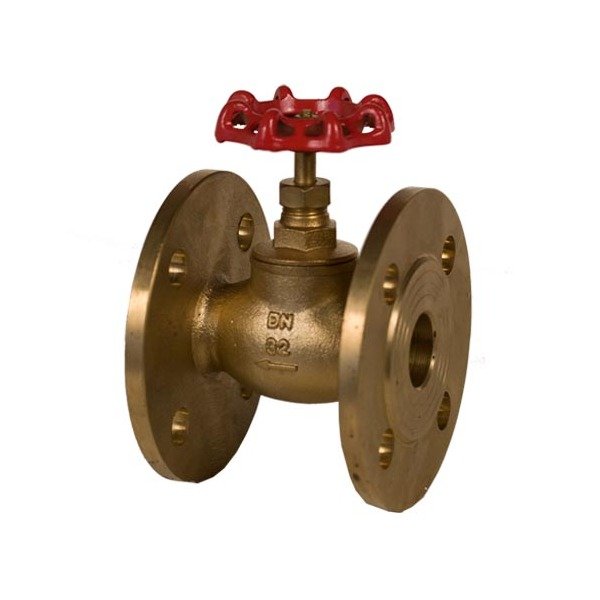

Bronze Globe Union Bonnet Valve - PN16 DIN 2501-PN16

Name: Bronze Globe Union Bonnet Valve - PN16 DIN 2501-PN16
Brand: World Wide Metric, Inc.
SKU: VAL-edc439
Price: 89.99 USD
Availability: OutOfStock

SKU:VAL-edc439

High-quality Bronze Globe Union Bonnet Valve - PN16 DIN 2501-PN16. Durable design, smooth operation, ideal for industrial use.

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

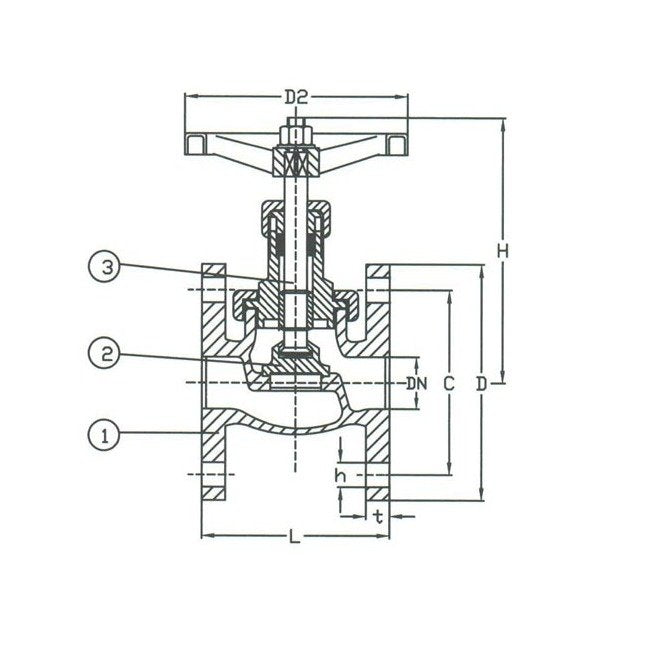

The Bronze Globe Union Bonnet Valve - PN16 is a high-quality valve suitable for industrial applications. Constructed with gunmetal body, bronze seat, disc, and brass stem, it ensures durability and reliable performance. With DIN 17052 and DIN 17053 compliance, this valve features dimensions of L: 90mm, D: 115mm, C: 85mm, and weighs 2.70 kg. The flanges meet DIN2501-PN16 standards, providing a secure connection. Its handwheel actuators allow for easy operation, making it ideal for institutional buyers seeking efficiency and quality.

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Bronze

Specifications C

85 mm

Specifications Connection

Flanged Drilled

Specifications D

115 mm

Specifications D2

90 mm

Specifications Disc Material

Bronze

Specifications H

140 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L

90 mm

Specifications Number Of Holes

Specifications Seat Material

Bronze

Specifications Size

025

Specifications Stem Material

Brass

Specifications T

16 mm

Specifications Weight

2.70 kg
