Bronze Globe Valve - DIN PN16 Short Pattern Bolted Bonnet Valve

Name: Bronze Globe Valve - DIN PN16 Short Pattern Bolted Bonnet Valve
Brand: World Wide Metric, Inc.
SKU: VAL-4edd02
Price: 289.99 USD
Availability: OutOfStock

SKU:VAL-4edd02

Premium Bronze Globe Valve for precise fluid control in industrial applications. Compliant with DIN standards.

$289.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Bronze Globe Valve - DIN PN16 Short Pattern Bolted Bonnet Valve is meticulously crafted for precision performance. Featuring a gunmetal body, bronze seat, disc, and stem made according to DIN standards, this valve ensures robustness and longevity. With flanges compliant with DIN2501-PN16, it guarantees secure connections. The handwheel actuator provides ease of operation, making it ideal for industrial applications requiring reliable fluid control.

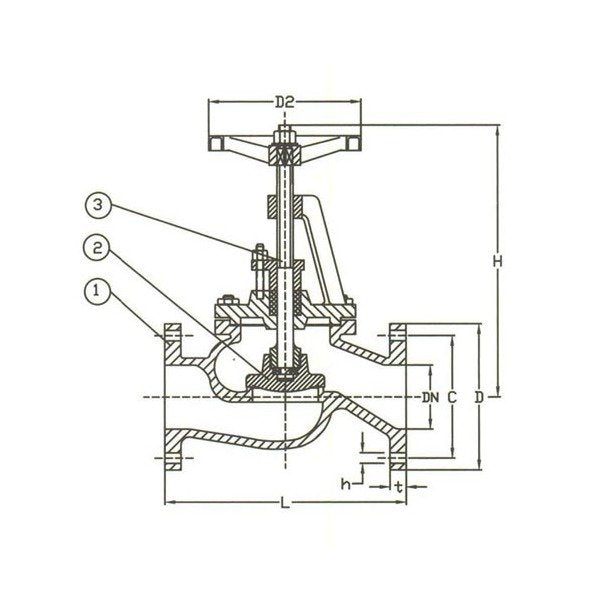

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Bronze

Specifications C

160 mm

Specifications Connection

Flanged Drilled

Specifications D

200 mm

Specifications D2

200 mm

Specifications Disc Material

Bronze

Specifications H

275 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L

240 mm

Specifications Number Of Holes

Specifications Seat Material

Bronze

Specifications Size

080

Specifications Stem Material

Brass

Specifications T

22 mm

Specifications Weight

32.0 kg

Bronze Globe Valve - DIN PN16 Short Pattern Bolted Bonnet Valve
