The Bronze Globe Valve IB413T is engineered for heavy-duty service, meeting MSS SP-80 Type 2, Class 150 standards. Crafted with precision using high-quality bronze materials, Teflon disc, and threaded ends, this valve ensures reliable performance and durability. Featuring a union bonnet, gland packing, and 150 lb. SWP & 300 lb. WOG ratings, it is ideal for industrial applications requiring precise flow control.
Product Specifications

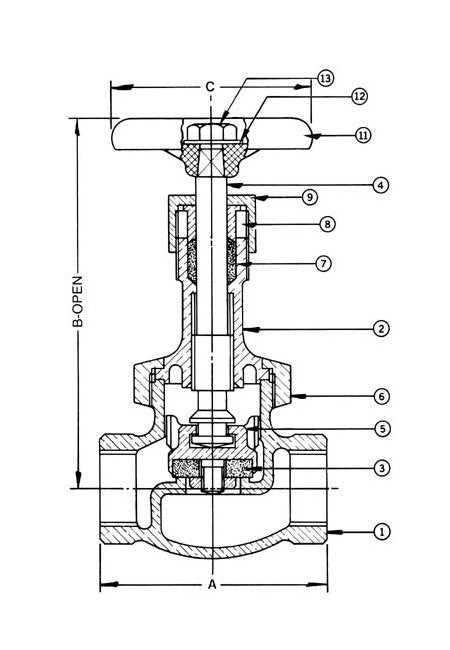

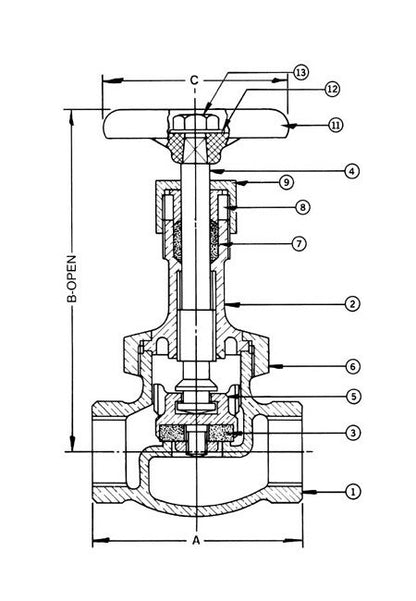

Material List 0
No. Part Material Specification 1 Body Bronze ASTM B 62 2 Bonnet Bronze ASTM B 62 3 Disc Teflon 4 Stem Bronze ASTM B 62 5 Disc Holder Bronze ASTM B 161/4" to 3/4" ASTM B 621" and 3" Incl. 6 Union Bonnet Nut Bronze ASTM B 62 7 Packing Non-Asbestos Commercial 8 Gland Brass ASTM B 124 C37700 9 Packing Nut Brass ASTM B 283 C37700 10 Disc Nut Bronze Commercial 11 Handwheel Mall. Iron Commercial 12 Identification Plate Aluminum Commercial 13 Handwheel Nut Brass Commercial
Specifications Dimension A
74.63 mm
Specifications Dimension B
131.78 mm
Specifications Dimension C
69.85 mm
Specifications Material
Bronze
Specifications Size
19.05 mm
