Bronze Globe Valve - PN 16 Bolted Bonnet (Short Pattern)
Bronze Globe Valve - PN 16 Bolted Bonnet (Short Pattern)
SKU:VAL-7e9070
Premium PN 16 Bronze Globe Valve with DIN2501-PN16 Flanges. Ideal for hydraulic systems. Handwheel actuator for easy use.
Regular price
$499.99
Regular price
Sale price
$499.99
Unit price
per
Initiate Order
Bronze Globe Valve - PN 16 Bolted Bonnet (Short Pattern)
$499.99
Quantity: 1
Claim Your Seller Account
Bronze Globe Valve - PN 16 Bolted Bonnet (Short Pattern)
$499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The PN 16 Bronze Globe Bolted Bonnet - Short Pattern Valve is expertly crafted with a Gunmetal body, Brass stem, and Gunmetal disc, meeting DIN 17052 standards. It features flanges according to DIN2501-PN16 for secure connections. With a sturdy build and precise engineering, this valve ensures reliable performance in hydraulic systems. The handwheel actuator allows for easy operation, making it a versatile choice for industrial applications.
Ready to Grow Without Cash Flow Constraints?

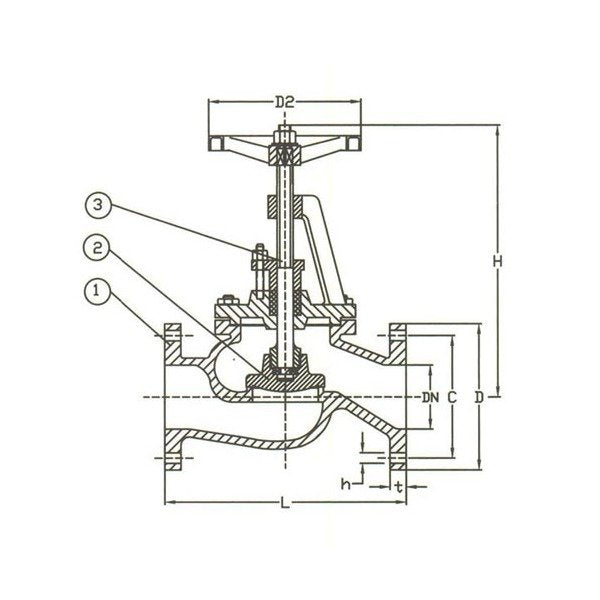

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze
Specifications C
295 mm
Specifications Connection
Flanged Drilled
Specifications D
340 mm
Specifications D2
420 mm
Specifications Disc Material
Bronze
Specifications H
600 mm
Specifications Hydraulic Inspection Body
16
Specifications Hydraulic Inspection Seat
10
Specifications L
500 mm
Specifications Number Of Holes
8
Specifications Seat Material
Bronze
Specifications Size
200
Specifications Stem Material
Brass
Specifications T
30 mm
Specifications Weight
136 kg
