Bronze Globe Valve - PN 16 Union Bonnet Valve

Name: Bronze Globe Valve - PN 16 Union Bonnet Valve
Brand: World Wide Metric, Inc.
SKU: VAL-6d3956
Price: 149.99 USD
Availability: OutOfStock

SKU:VAL-6d3956

Durable PN 16 Bronze Globe Valve with DIN standard compliance and efficient hydraulic performance.

$149.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

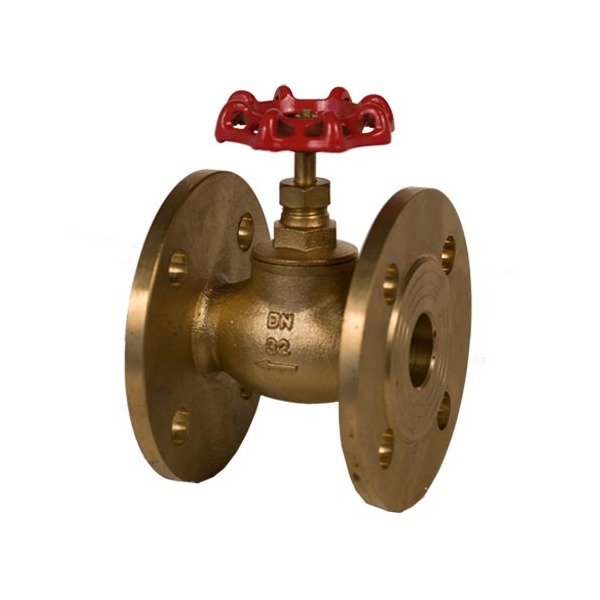

The Bronze Globe Union Bonnet Valve, PN 16, is a durable and reliable valve suitable for industrial applications. Constructed with gunmetal body, seat, and disc, and a brass stem, this valve meets DIN standards for quality and performance. Featuring a handwheel actuator and flanged connection, it ensures ease of operation and installation. With precise hydraulic inspections and adherence to DIN2501-PN16 standards, this valve guarantees efficient and leak-free performance in various hydraulic systems.

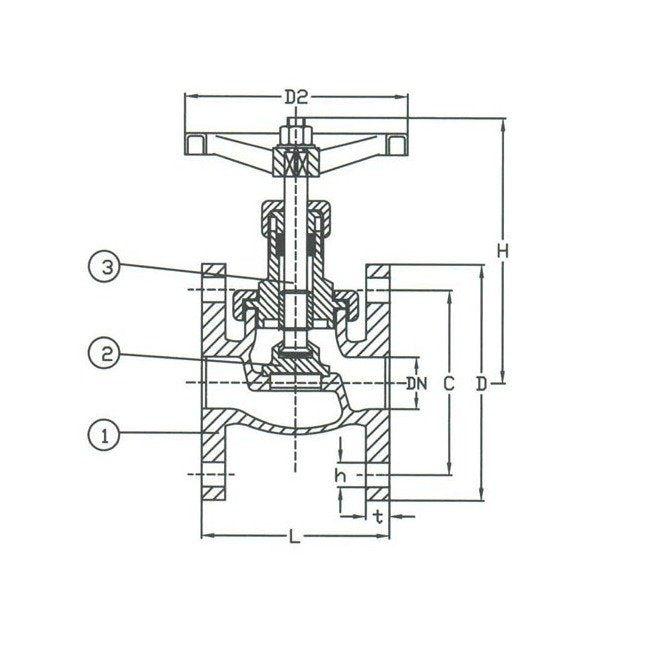

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Bronze

Specifications C

110 mm

Specifications Connection

Flanged Drilled

Specifications D

150 mm

Specifications D2

110 mm

Specifications Disc Material

Bronze

Specifications H

175 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L

120 mm

Specifications Number Of Holes

Specifications Seat Material

Bronze

Specifications Size

040

Specifications Stem Material

Brass

Specifications T

19 mm

Specifications Weight

6.3 kg
