Bronze Globe Valve PN 16 with Bolted Bonnet

Name: Bronze Globe Valve PN 16 with Bolted Bonnet
Brand: World Wide Metric, Inc.
SKU: VAL-81e27b
Price: 289.99 USD
Availability: OutOfStock

SKU:VAL-81e27b

Durable Bronze Globe Valve PN 16 with Bolted Bonnet, compliant with DIN standards for reliable industrial fluid control.

$289.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

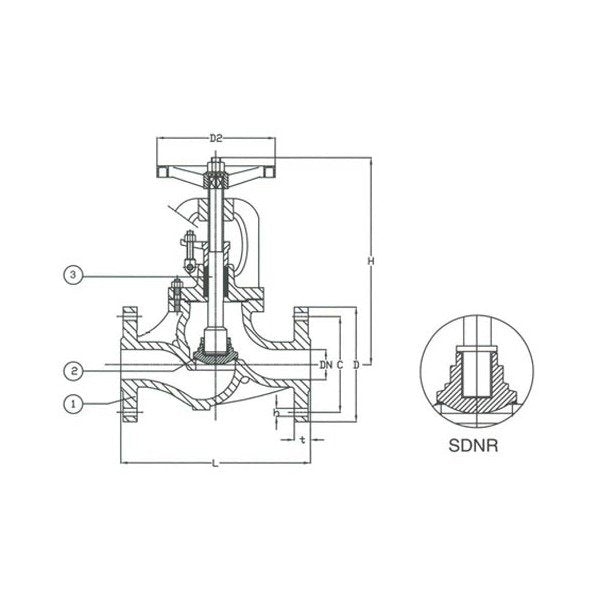

The Bronze Globe Valve PN 16 with Bolted Bonnet is a robust valve designed for industrial applications. Crafted from durable bronze with a brass stem, this valve ensures reliable performance under high pressure. Compliant with DIN standards, it features a gunmetal disc and seat, providing a tight seal for fluid control. With precise measurements according to ISO5752, DIN2501-PN16 flanges, and a handwheel actuator, this valve offers easy operation and maintenance, making it ideal for institutional settings.

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Bronze

Specifications C

180 mm

Specifications Connection

Flanged Drilled

Specifications D

220 mm

Specifications D2

225 mm

Specifications Disc Material

Bronze

Specifications H

375 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L

350 mm

Specifications Number Of Holes

Specifications Seat Material

Bronze

Specifications Size

100

Specifications Stem Material

Brass

Specifications T

20 mm

Specifications Weight

30.00 kg

Bronze Globe Valve PN 16 with Bolted Bonnet
