Bronze Globe Valve - Short Pattern, PN 16, DIN Certified
Bronze Globe Valve - Short Pattern, PN 16, DIN Certified
SKU:VAL-dc011e
Durable Bronze Globe Valve with DIN Certification for precise flow control and easy installation.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Bronze Globe Valve - Short Pattern, PN 16, DIN Certified
$299.99
Quantity: 1
Claim Your Seller Account
Bronze Globe Valve - Short Pattern, PN 16, DIN Certified
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Bronze Globe Bolted Bonnet Valve is a high-quality, durable solution for fluid control systems. Constructed with Gunmetal body, Brass stem, and Gunmetal disc, this valve ensures reliable performance. Compliant with DIN standards, featuring Handwheel actuators and Flanged Drilled connection, it guarantees ease of operation and installation. With dimensions meeting DIN2501-PN16 specifications, this valve is ideal for applications requiring hydraulic inspections and precise flow control.

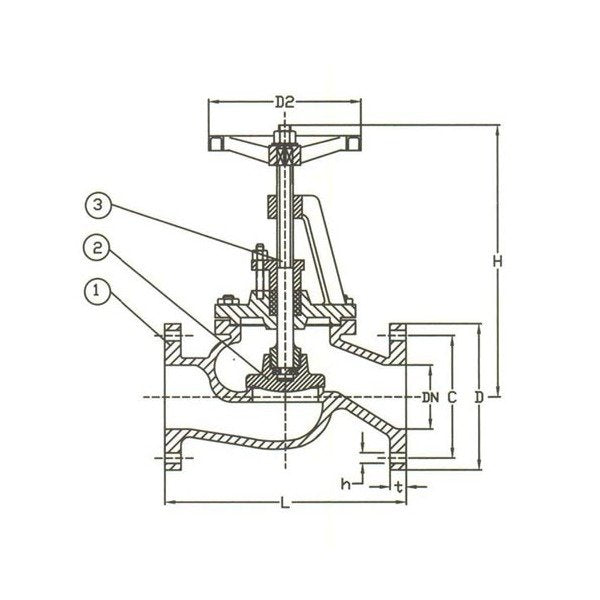

Product Specifications
Specifications Actuators
Handwheel
Specifications Body Material
Bronze
Specifications C
110 mm
Specifications Connection
Flanged Drilled
Specifications D
150 mm
Specifications D2
150 mm
Specifications Disc Material
Bronze
Specifications H
210 mm
Specifications Hydraulic Inspection Body
25
Specifications Hydraulic Inspection Seat
16
Specifications L
155 mm
Specifications Number Of Holes
4
Specifications Seat Material
Bronze
Specifications Size
040
Specifications Stem Material
Brass
Specifications T
19 mm
Specifications Weight
10.0 kg
