Bronze Horizontal Swing Check Valve - 12.70mm

Bronze Horizontal Swing Check Valve - 12.70mm

SKU:VAL-914cbf

High-quality Bronze Horizontal Swing Check Valve with 300 lb. SWP, threaded ends, and ASTM B61 material for superior performance.

Regular price $189.99
Regular price Sale price $189.99
Sale

Initiate Order

Bronze Horizontal Swing Check Valve - 12.70mm

Bronze Horizontal Swing Check Valve - 12.70mm

$189.99

Quantity: 1

Claim Your Seller Account

Bronze Horizontal Swing Check Valve - 12.70mm

Bronze Horizontal Swing Check Valve - 12.70mm

$189.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Bronze Horizontal Swing Check Valve is a top-performing valve designed for industrial applications. With a working pressure of 300 lb. SWP and temperature resistance up to 425°F, it ensures reliable performance under demanding conditions. Crafted from high-quality cast bronze material conforming to ASTM B61 standards, this valve features a Y-Pattern design, threaded ends, and a regrinding disc for enhanced functionality and durability. Its compliance with MSS SP-80 Type 3, Class 300 ensures it meets industry benchmarks for quality and performance.

Product Specifications

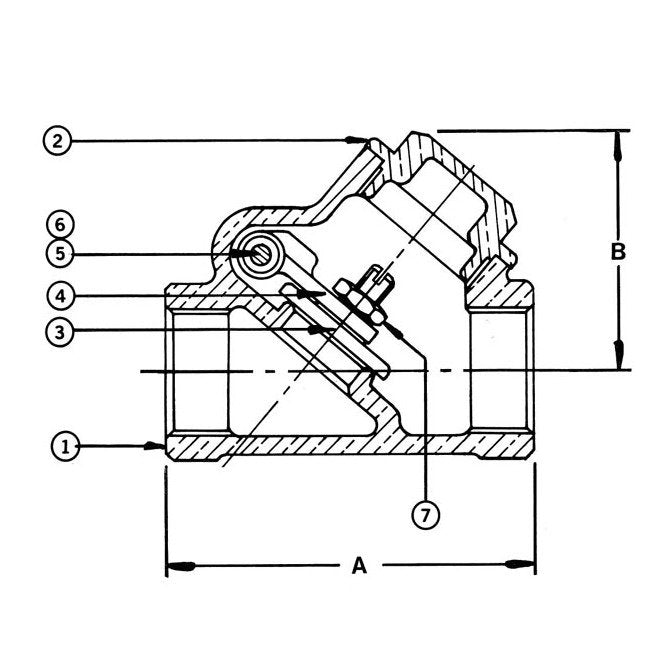

Material List 0
No.  Part Material Specification 1 Body Cast Bronze ASTM B 61 2 Cap Cast Bronze ASTM B 61 3 Disc Cast Bronze ASTM B 61 4 Lever Cast Bronze ASTM B 61 5 Pin St. Steel Commercial 6 Plug Rod Brass ASTM B 16 7 Disc Nut Rod Brass ASTM B 16
Specifications Dimension A
66.68 mm
Specifications Dimension B
44.45 mm
Specifications Material
Bronze
Specifications Size
12.70 mm
