Bronze Horizontal Swing Check Valve IB944
Bronze Horizontal Swing Check Valve IB944
SKU:VAL-6e13be
High-quality Bronze Horizontal Swing Check Valve conforming to MSS SP-80 standards, ideal for various applications.
Regular price
$149.99
Regular price
Sale price
$149.99
Unit price
per
Initiate Order
Bronze Horizontal Swing Check Valve IB944
$149.99
Quantity: 1
Claim Your Seller Account
Bronze Horizontal Swing Check Valve IB944
$149.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Bronze Horizontal Swing Check Valve IB944 is a high-quality valve suitable for a variety of applications. With a working pressure of 200 lb SWP and 400 lb WOG, this valve can handle temperatures up to 425°F. The valve features a regrinding disc, Y-Pattern design, and threaded ends, conforming to MSS SP-80 Type 3, Class 200 standards. Made of durable cast bronze material with stainless steel and brass components, this valve ensures longevity and reliability in use.
Product Specifications
Material List 0

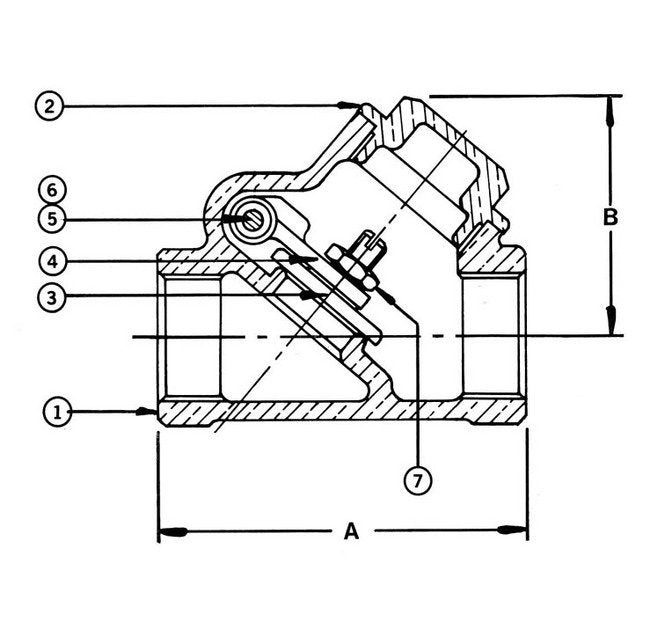

No. Â Part Material Specification 1 Body Cast Bronze ASTM B 61 2 Cap Cast Bronze ASTM B 61 3 Disc Cast Bronze ASTM B 61 4 Lever Cast Bronze ASTM B 61 5 Pin St. Steel Commercial 6 Plug Rod Brass ASTM B 16 7 Disc Nut Rod Brass ASTM B 16
Specifications Dimension A
149.20 mm
Specifications Dimension B
207.98 mm
Specifications Material
Bronze
Specifications Size
50.80 mm
