Bronze Horizontal Swing Check Valve - Size 12.70mm
Bronze Horizontal Swing Check Valve - Size 12.70mm
SKU:VAL-3116c3
Reliable Bronze Horizontal Swing Check Valve, 200 lb. SWP, 425°F, Conforms to MSS SP-80
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
Bronze Horizontal Swing Check Valve - Size 12.70mm
$59.99
Quantity: 1
Claim Your Seller Account
Bronze Horizontal Swing Check Valve - Size 12.70mm
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Bronze Horizontal Swing Check Valve is a reliable solution for fluid control applications. With a working pressure of 200 lb. SWP and temperature resistance up to 425°F, this valve ensures optimal performance in demanding environments. Featuring Y-Pattern design, threaded ends, and a reground disc, it conforms to MSS SP-80 Type 3, Class 200 standards, making it suitable for a wide range of industrial settings.
Product Specifications
Material List 0

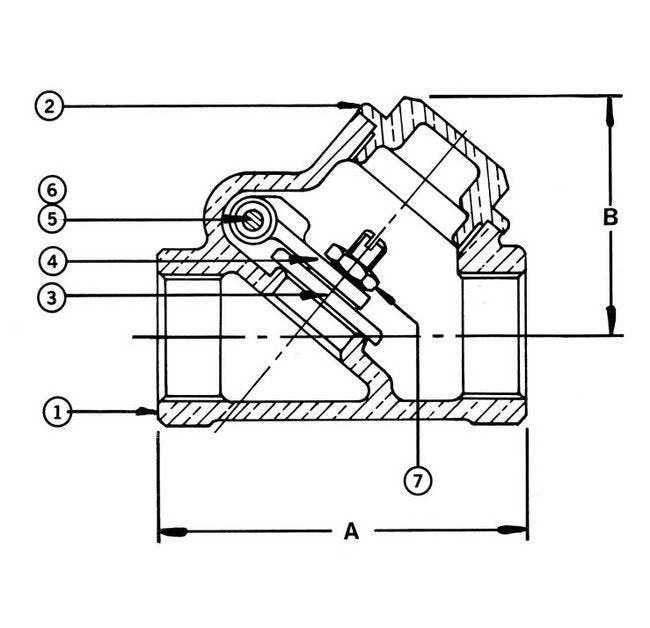

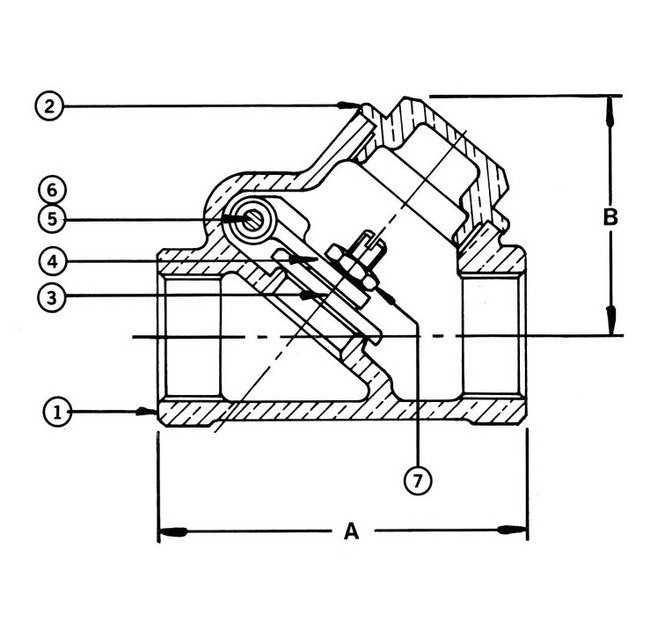

No. Â Part Material Specification 1 Body Cast Bronze ASTM B 61 2 Cap Cast Bronze ASTM B 61 3 Disc Cast Bronze ASTM B 61 4 Lever Cast Bronze ASTM B 61 5 Pin St. Steel Commercial 6 Plug Rod Brass ASTM B 16 7 Disc Nut Rod Brass ASTM B 16
Specifications Dimension A
66.68 mm
Specifications Dimension B
44.45 mm
Specifications Material
Bronze
Specifications Size
12.70 mm
