Bronze Horizontal Swing Check Valve - Threaded Ends
Bronze Horizontal Swing Check Valve - Threaded Ends
SKU:VAL-bd817e
High-performance Bronze Horizontal Swing Check Valve for industrial use, meets MSS SP-80 standards.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Bronze Horizontal Swing Check Valve - Threaded Ends
$129.99
Quantity: 1
Claim Your Seller Account
Bronze Horizontal Swing Check Valve - Threaded Ends
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Bronze Horizontal Swing Check Valve offers exceptional performance for industrial applications. With a working pressure of 300 lb SWP and up to 600 lb WOG, this valve is designed for durability and reliability. Featuring a Y-Pattern design and a regrinding disc, it conforms to MSS SP-80 Type 3 Class 300 standards. Constructed with high-quality cast bronze materials, threaded ends, and precise dimensions, this valve ensures efficient flow control and long-term functionality.
Product Specifications

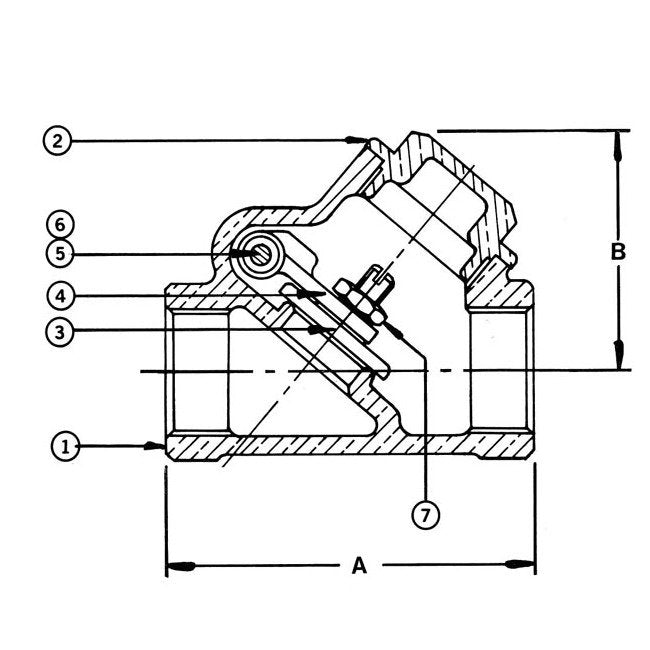

Material List 0
No. Â Part Material Specification 1 Body Cast Bronze ASTM B 61 2 Cap Cast Bronze ASTM B 61 3 Disc Cast Bronze ASTM B 61 4 Lever Cast Bronze ASTM B 61 5 Pin St. Steel Commercial 6 Plug Rod Brass ASTM B 16 7 Disc Nut Rod Brass ASTM B 16
Specifications Dimension A
76.20 mm
Specifications Dimension B
49.23 mm
Specifications Material
Bronze
Specifications Size
19.05 mm
