Bronze Pilot Piston Solenoid Valves - 4000/5000 Series
Bronze Pilot Piston Solenoid Valves - 4000/5000 Series
SKU:ATK-abf56b
High-performance Bronze Pilot Piston Solenoid Valves for medium pressure applications, offering reliability and durability in a wide temperature range. Ideal for various fluid types and compliant with industry standards.
Regular price
$289.99
Regular price
Sale price
$289.99
Unit price
per
Initiate Order
Bronze Pilot Piston Solenoid Valves - 4000/5000 Series
$289.99
Quantity: 1
Claim Your Seller Account
Bronze Pilot Piston Solenoid Valves - 4000/5000 Series
$289.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Bronze Pilot Piston Solenoid Valves from the 4000/5000 Series are designed for medium-pressure applications, with a pressure range of 5 to 500 psig. These versatile valves can be configured for various fluid types, including gas and liquids up to 200 SSU viscosity. Featuring bronze valve material and a range of seat options, these valves ensure reliable operation. Available in different connection sizes, seat materials, and coil housing options, they offer flexibility and durability in a wide temperature range from -423°F to +500°F. With compliance to industry standards, these valves are ideal for institutional and government procurement needs.
Product Specifications
Specifications Body Material
Bronze
Specifications Coil Housing
Standard
Specifications Coil Insulation Rating
Class H (180° C)
Specifications Coil Type
Single Wound Molded
Specifications Connection Size
1 1/2 in
Specifications Connection Type
Female NPT
Specifications Cv
21.0

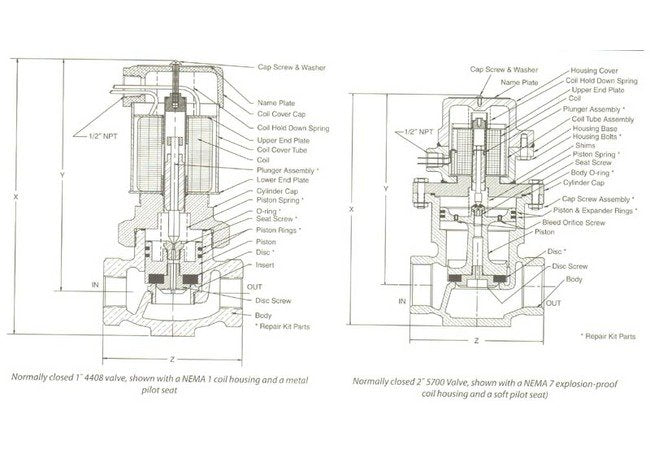

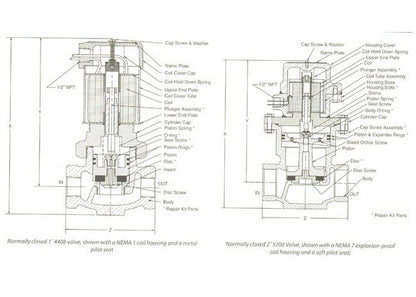

Specifications Dim X
9 13/16 in
Specifications Dim Y
8 in
Specifications Dim Z
5 1/16 in
Specifications Fluid Media Type
Liquid from 41 SUS to 150 SUS
Specifications Main Seat Orifice
1 1/2 in
Specifications Operating Pressure
5 to 500 psig | 0.4 to 34.5 bar
Specifications Position Of Valve De Energized
Normally Closed
Specifications Seat Seal Material
Buna N
Specifications Series
4000
Specifications Temperature Range
-65 to 275 ºF | -54 to 135 ºC
Specifications Type
Solenoid Valve
Specifications Voltage
115 VAC
