Bronze PN 16 Globe Valve - Short Pattern for DIN Applications

Name: Bronze PN 16 Globe Valve - Short Pattern for DIN Applications
Brand: World Wide Metric, Inc.
SKU: VAL-b68b25
Price: 799.99 USD
Availability: OutOfStock

SKU:VAL-b68b25

Precision-engineered Bronze Globe Valve for DIN applications, ensuring reliable flow control with sturdy construction and DIN 17052 compliance.

$799.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Bronze PN 16 Globe Bolted Bonnet Valve is a high-quality solution for applications requiring precision flow control. Constructed with Gunmetal body, Brass stem, and Bronze disc, this valve meets stringent DIN 17052 standards. With precise dimensions and a weight of 62.0 kg, it ensures reliable performance. The Handwheel actuator allows for manual control, and the Flanged Drilled connection ensures secure installation. Ideal for industrial settings requiring durable and efficient valves.

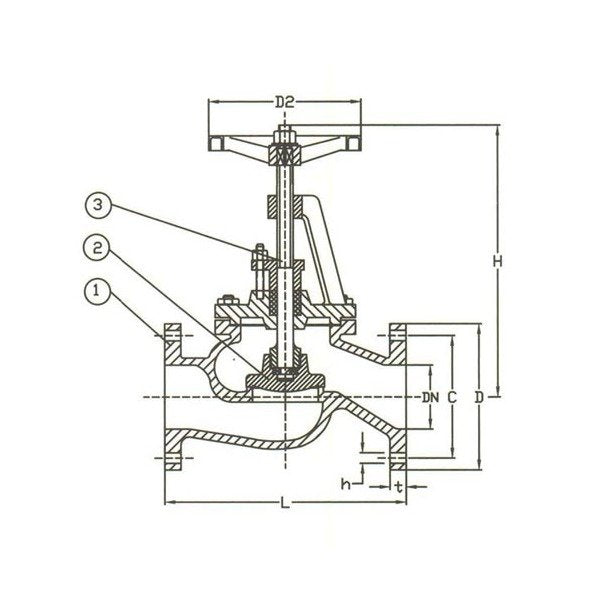

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Bronze

Specifications C

210 mm

Specifications Connection

Flanged Drilled

Specifications D

250 mm

Specifications D2

225 mm

Specifications Disc Material

Bronze

Specifications H

360 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L

320 mm

Specifications Number Of Holes

Specifications Seat Material

Bronze

Specifications Size

125

Specifications Stem Material

Brass

Specifications T

26 mm

Specifications Weight

62.0 kg

Bronze PN 16 Globe Valve - Short Pattern for DIN Applications
