Bronze PN 16 Globe Valve with Bolted Bonnet - DIN Series 1

Name: Bronze PN 16 Globe Valve with Bolted Bonnet - DIN Series 1
Brand: World Wide Metric, Inc.
SKU: VAL-ff9d7d
Price: 899.99 USD
Availability: OutOfStock

SKU:VAL-ff9d7d

High-performance Bronze Globe Valve with Bolted Bonnet for industrial use. Durable bronze construction, precise control, and corrosion resistance.

$899.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Bronze PN 16 Globe Valve with Bolted Bonnet is a high-quality valve designed for industrial applications. Constructed with durable bronze body, disc, and seat materials, this valve ensures long-lasting performance and corrosion resistance. The brass stem and handwheel actuator provide smooth operation and control. Meeting ISO5752 Series 1 standards with DIN2501-PN16 flanges, this valve is ideal for hydraulic systems requiring reliability and precision.

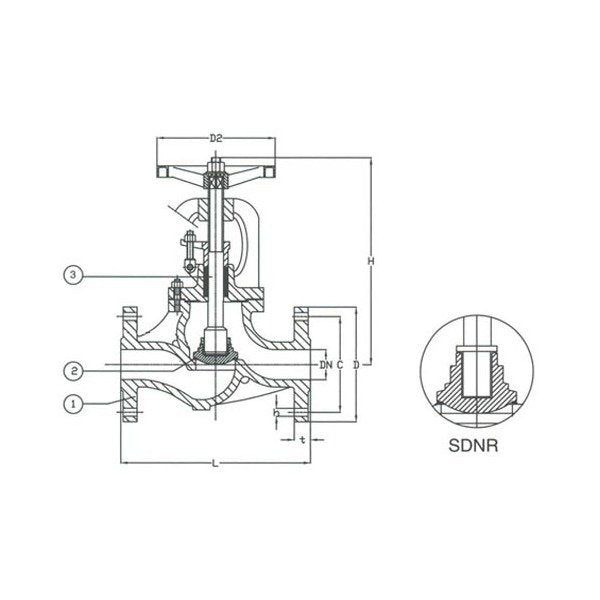

Product Specifications

Specifications Actuators

Handwheel

Specifications Body Material

Bronze

Specifications C

210 mm

Specifications Connection

Flanged Drilled

Specifications D

250 mm

Specifications D2

225 mm

Specifications Disc Material

Bronze

Specifications H

415 mm

Specifications Hydraulic Inspection Body

Specifications Hydraulic Inspection Seat

Specifications L

400 mm

Specifications Number Of Holes

Specifications Seat Material

Bronze

Specifications Size

125

Specifications Stem Material

Brass

Specifications T

22 mm

Specifications Weight

50.0 kg

Bronze PN 16 Globe Valve with Bolted Bonnet - DIN Series 1
