Bronze Reducing Valve for Air, Gas, or Water

Name: Bronze Reducing Valve for Air, Gas, or Water
Brand: World Wide Metric, Inc.
SKU: VAL-bc7fb5
Price: 149.99 USD
Availability: OutOfStock

SKU:VAL-bc7fb5

Bronze Reducing Valve for air, gas, or water; DIN standards compliant, offers precise pressure control.

$149.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Bronze Reducing Valve is designed for precise pressure regulation in air, gas, or water systems. Crafted with durable bronze body, synthetic disc, and seat materials, along with a brass stem, this valve ensures optimal performance under varying pressures. With a max inlet pressure of 30/25 bar and a reducer pressure range of 1.5 - 12 bar, it offers reliable operation in industrial settings. Compliant with DIN standards and featuring spring actuators, this valve is ideal for applications requiring precision and durability.

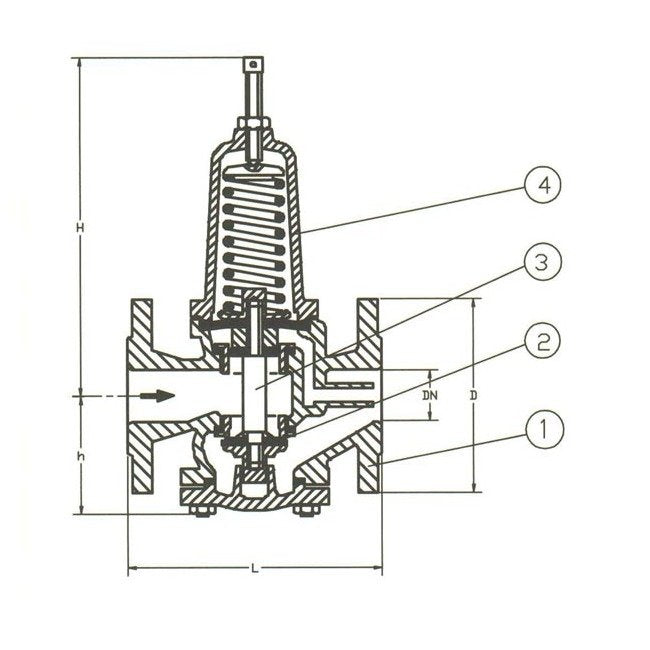

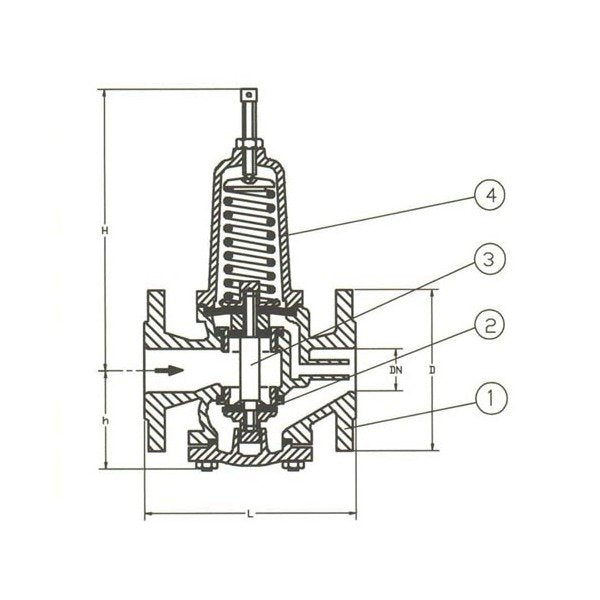

Product Specifications

Specifications Actuators

Spring

Specifications Body Material

Bronze

Specifications C

110 mm

Specifications D

150 mm

Specifications Disc Material

Synthetic Material

Specifications H

172 mm

Specifications Hole Diameter

18 mm

Specifications L

200 mm

Specifications Max Inlet Pressure

30/25 bar

Specifications Number Of Holes

Specifications Reducer Pressure

1.5 - 12 bar

Specifications Seat Material

Synthetic Material

Specifications Size

040

Specifications Stem Material

Brass

Specifications Weight

20.8 kg
