Bronze Reducing Valve for Air, Gas or Water - DIN 17052

Name: Bronze Reducing Valve for Air, Gas or Water - DIN 17052
Brand: World Wide Metric, Inc.
SKU: VAL-2cf789
Price: 239.99 USD
Availability: OutOfStock

SKU:VAL-2cf789

Premium Bronze Reducing Valve for Air, Gas or Water - DIN 17052, Synthetic Disc & Seat, Brass Stem - Perfect for Industrial Applications

$239.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

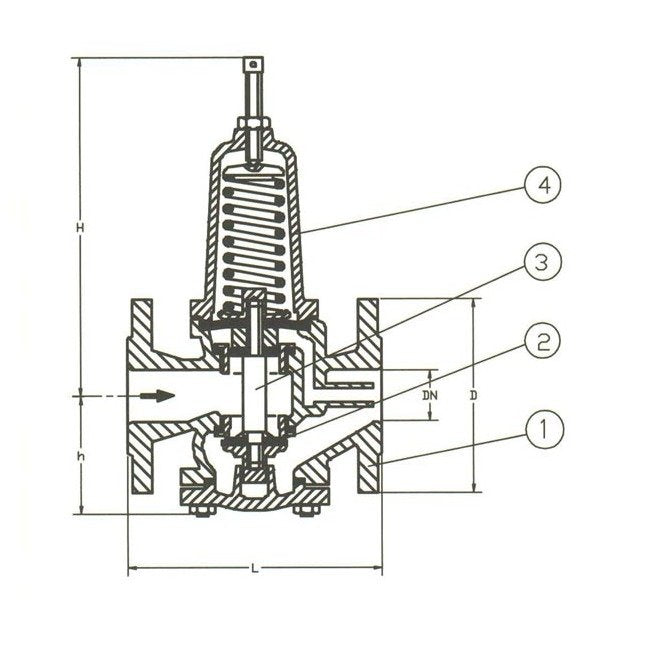

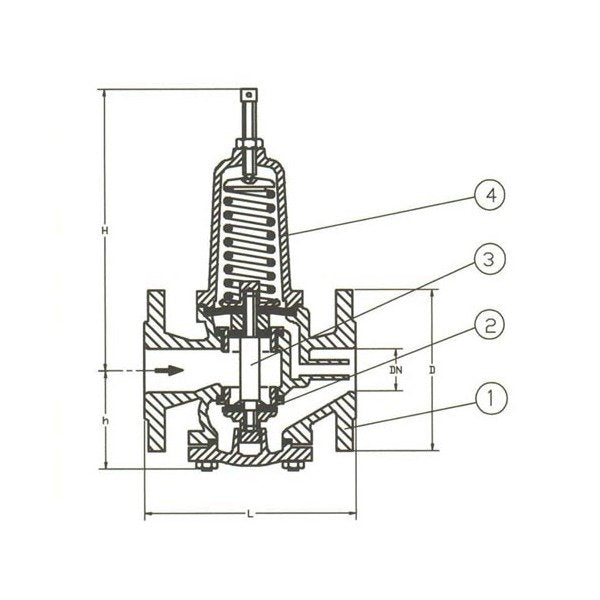

The Bronze Reducing Valve for Air, Gas or Water is a top-tier DIN specialty valve designed for precision and durability. Crafted with bronze body and cap as per DIN 1705 standards, it features synthetic disc and seat materials for optimal performance. The brass stem ensures reliability, while the reducer pressure range of 1.5 - 12 bar and max inlet pressure of 30/25 bar offer versatile applications. With precise dimensions meeting DIN2501 flange standards, this valve guarantees efficient flow control and longevity in industrial settings.

Product Specifications

Specifications Actuators

Spring

Specifications Body Material

Bronze

Specifications C

100 mm

Specifications D

140 mm

Specifications Disc Material

Synthetic Material

Specifications H

141 mm

Specifications Hole Diameter

18 mm

Specifications L

180 mm

Specifications Max Inlet Pressure

30/25 bar

Specifications Number Of Holes

Specifications Reducer Pressure

1.5 - 12 bar

Specifications Seat Material

Synthetic Material

Specifications Size

032

Specifications Stem Material

Brass

Specifications Weight

16.5 kg

Bronze Reducing Valve for Air, Gas or Water - DIN 17052
