Bronze Reducing Valve for Air, Gas & Water

Name: Bronze Reducing Valve for Air, Gas & Water
Brand: World Wide Metric, Inc.
SKU: VAL-014b46
Price: 249.99 USD
Availability: OutOfStock

SKU:VAL-014b46

Premium Bronze Reducing Valve for Air, Gas & Water applications. DIN compliant for reliability & performance.

$249.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Bronze Reducing Valve is a high-quality, durable solution suitable for air, gas, or water applications. Crafted with precision, the valve features a Bronze body, Synthetic Material disc & seat, and Brass stem. With a Max. Inlet Pressure of 16 bar and Reducer Pressure range of 1.5 - 6 bar, it ensures efficient regulation. Compliant with DIN standards, this valve offers reliability and longevity for both consumer and institutional users.

Product Specifications

Specifications Actuators

Spring

Specifications Body Material

Bronze

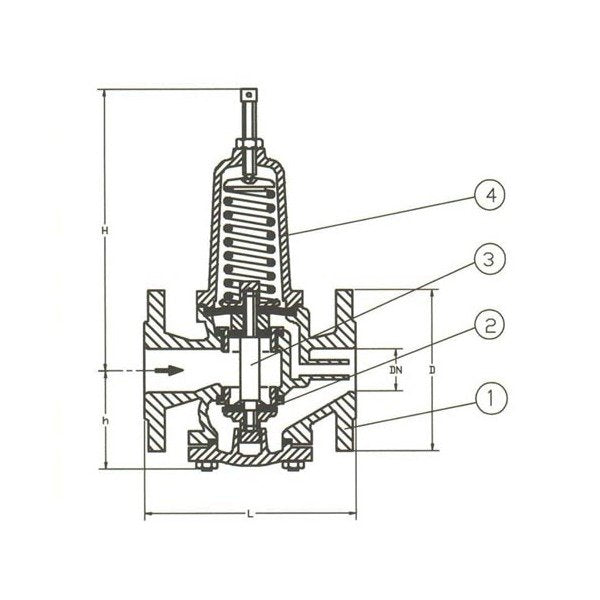

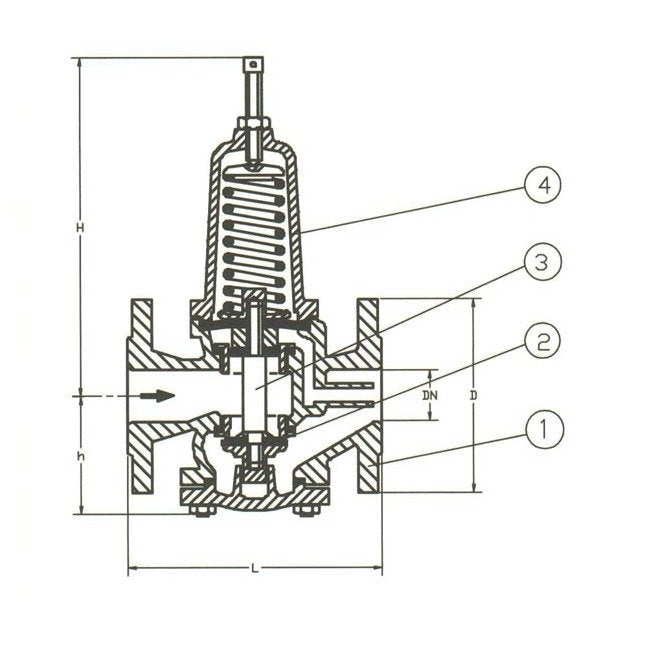

Specifications C

145 mm

Specifications D

185 mm

Specifications Disc Material

Synthetic Material

Specifications H

370 mm

Specifications Hole Diameter

18 mm

Specifications L

290 mm

Specifications Max Inlet Pressure

16 bar

Specifications Number Of Holes

Specifications Reducer Pressure

1.5 - 6 bar

Specifications Seat Material

Synthetic Material

Specifications Size

065

Specifications Stem Material

Brass

Specifications Weight

62.0 kg

Bronze Reducing Valve for Air, Gas & Water
