Bronze Reducing Valve for Air, Gas, Water - DIN Specialty

Name: Bronze Reducing Valve for Air, Gas, Water - DIN Specialty
Brand: World Wide Metric, Inc.
SKU: VAL-2c3486
Price: 299.99 USD
Availability: OutOfStock

SKU:VAL-2c3486

Premium Bronze Reducing Valve for Air, Gas, Water. Precision control, reliable performance, DIN compliant.

$299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Bronze Reducing Valve is a robust solution designed for precise pressure control in air, gas, or water systems. Crafted with durable Bronze body and synthetic material components, this valve ensures reliable performance under varying pressures. With standard compliance to DIN 17052 and DIN 1767, this valve guarantees efficiency and longevity in industrial settings. The Brass stem and Bronze cap enhance durability, while the Spring actuators facilitate smooth operation. Trust this valve for consistent pressure regulation and secure performance in demanding applications.

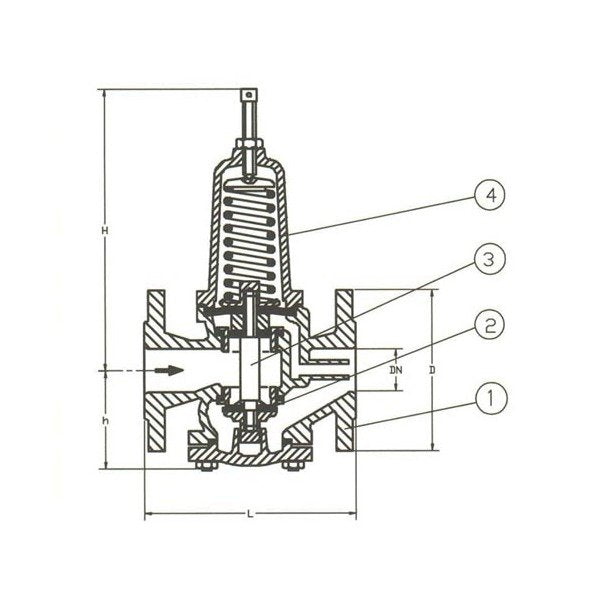

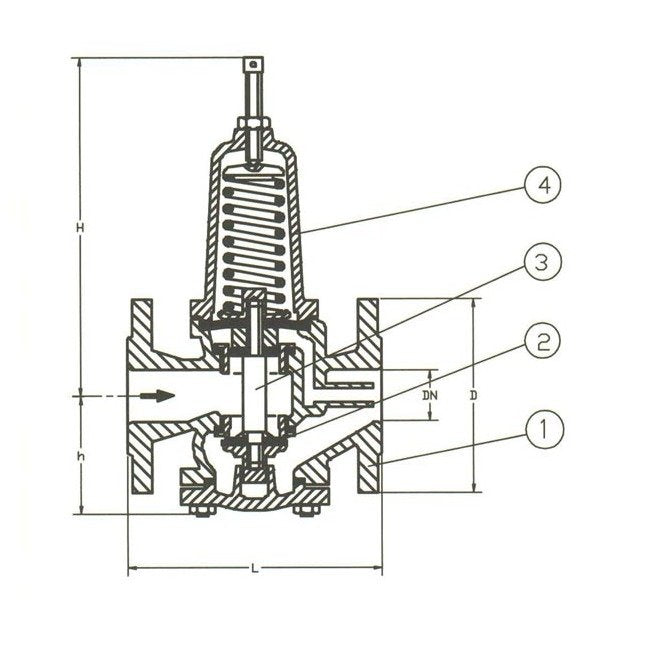

Product Specifications

Specifications Actuators

Spring

Specifications Body Material

Bronze

Specifications C

125 mm

Specifications D

165 mm

Specifications Disc Material

Synthetic Material

Specifications H

330 mm

Specifications Hole Diameter

18 mm

Specifications L

230 mm

Specifications Max Inlet Pressure

16 bar

Specifications Number Of Holes

Specifications Reducer Pressure

1.5 - 6 bar

Specifications Seat Material

Synthetic Material

Specifications Size

050

Specifications Stem Material

Brass

Specifications Weight

35.60 kg
