Bronze Swing Check Valve - Class 150, Bolted Cover, 2-1/2"
Bronze Swing Check Valve - Class 150, Bolted Cover, 2-1/2"
SKU:VAL-af8d9f
Premium Class 150 Bronze Swing Check Valve for efficient flow control and backflow prevention in industrial environments.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Bronze Swing Check Valve - Class 150, Bolted Cover, 2-1/2"
$299.99
Quantity: 1
Claim Your Seller Account
Bronze Swing Check Valve - Class 150, Bolted Cover, 2-1/2"
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

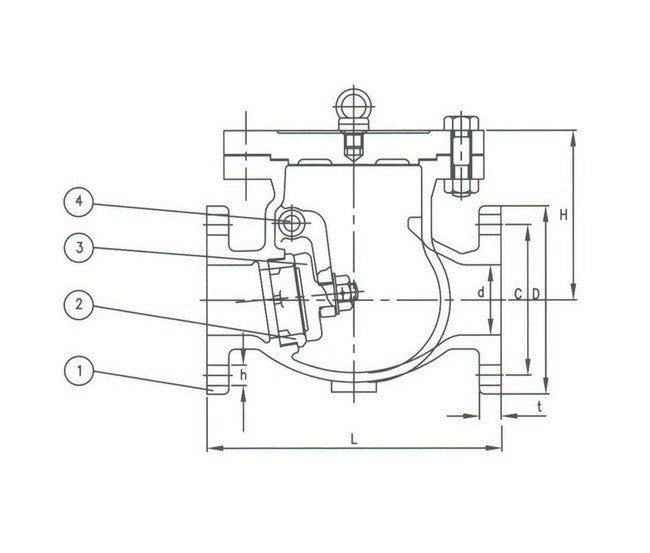

The Bronze Swing Check Valve, with a bolted cover, provides reliable backflow prevention and smooth flow control in industrial settings. Crafted from robust bronze with brass and stainless steel components, this valve ensures durability and corrosion resistance, meeting ANSI B16.10 standards. Suitable for hydraulic applications up to 350 PSIG, it boasts precise dimensions (L: 8.5 in, D: 7 in, C: 5.500 in) and sturdy construction, making it a top choice for various installations.
Product Specifications
Specifications Actuators
Gravity
Specifications Body Material
Bronze
Specifications C
5.500 in | 140 mm
Specifications Connection
Flanged Drilled
Specifications D
7 in | 178 mm
Specifications Disc Material
Bronze | Stainless Steel
Specifications H
6.00 in | 152 mm
Specifications Hydraulic Inspection Seat
225 PSIG
Specifications Hydraulic Inspection Shell
350 PSIG
Specifications L
8.5 in | 216 mm
Specifications Number Of Holes
4
Specifications Seat Material
Brass
Specifications Size
2-1/2"
Specifications Stem Material
Brass
Specifications T
0.56 in | 14 mm
Specifications Weight
51 lb | 23.0 kg
