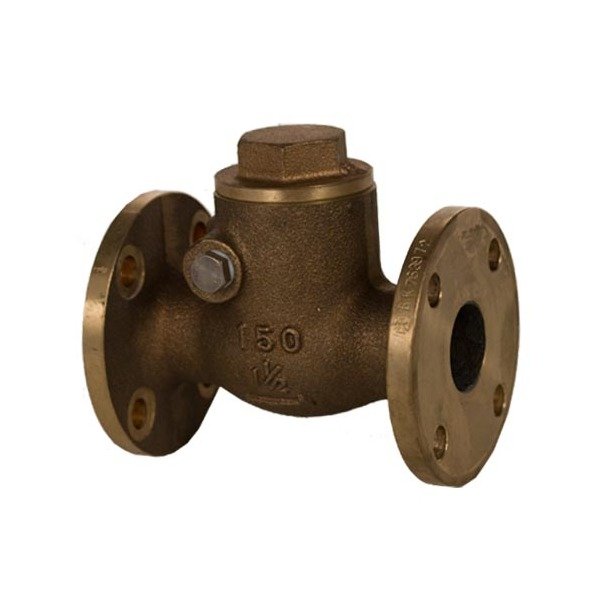

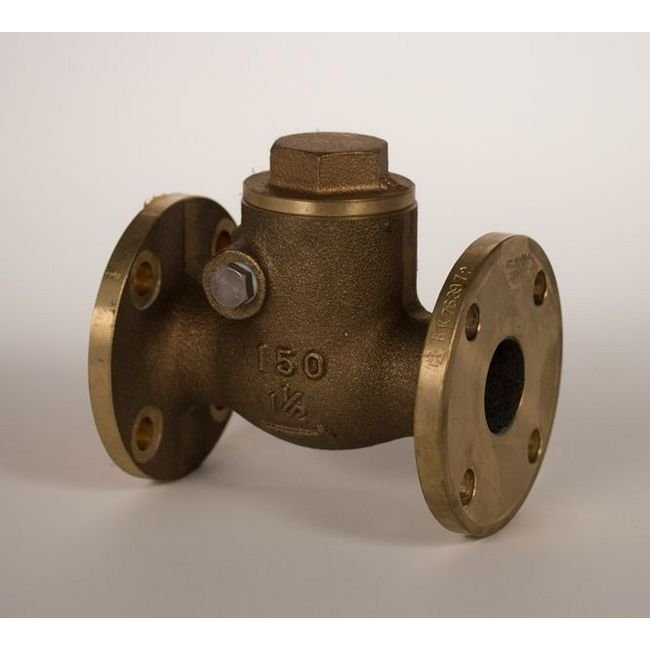

Bronze Swing Check Valve, Class 150, Bolted Cover - 3"
Bronze Swing Check Valve, Class 150, Bolted Cover - 3"
SKU:VAL-f53f3f
High-quality Class 150 Bronze Swing Check Valve with Bolted Cover for precise hydraulic control.
Regular price
$299.99
Regular price
Sale price
$299.99
Unit price
per
Initiate Order
Bronze Swing Check Valve, Class 150, Bolted Cover - 3"
$299.99
Quantity: 1
Claim Your Seller Account
Bronze Swing Check Valve, Class 150, Bolted Cover - 3"
$299.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Class 150 Bronze Swing Check Valve with a Bolted Cover is a reliable and durable valve designed for precise hydraulic control applications. Constructed with high-quality bronze, brass, and stainless steel materials, this valve ensures long-term performance and resistance to corrosion. Its ANSI compliance guarantees compatibility and seamless integration into various systems, while the gravity actuator enhances operational efficiency. Ideal for industrial applications, this valve offers hydraulic inspections at 350 PSIG (Shell) and 225 PSIG (Seat), meeting stringent industry standards.
Product Specifications
Specifications Actuators
Gravity
Specifications Body Material
Bronze

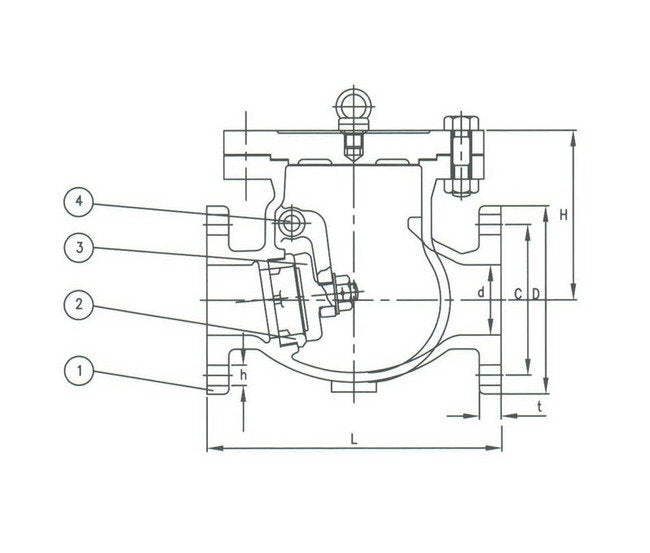

Specifications C
6.0 in | 152 mm
Specifications Connection
Flanged Drilled
Specifications D
7.5 in | 191 mm
Specifications Disc Material
Bronze | Stainless Steel
Specifications H
6.50 in | 165 mm
Specifications Hydraulic Inspection Seat
225 PSIG
Specifications Hydraulic Inspection Shell
350 PSIG
Specifications L
9.5 in | 241 mm
Specifications Number Of Holes
4
Specifications Seat Material
Brass
Specifications Size
3"
Specifications Stem Material
Brass
Specifications T
0.62 in | 16 mm
Specifications Weight
73 lb | 33 kg
