Bronze Touch Bar Exit Device - Commercial Door Hardware
Bronze Touch Bar Exit Device - Commercial Door Hardware
SKU:COM-d94347
Durable Bronze Touch Bar Exit Device for commercial doors, meets ANSI Grade 2 & UL standards.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Bronze Touch Bar Exit Device - Commercial Door Hardware
$129.99
Quantity: 1
Claim Your Seller Account
Bronze Touch Bar Exit Device - Commercial Door Hardware
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

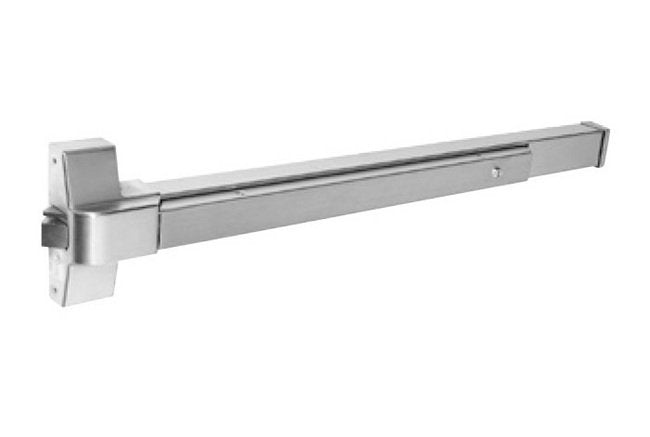

Upgrade your security with our Bronze Touch Bar Exit Device designed for commercial doors. Crafted from durable extruded anodized aluminum with stainless steel components, this device ensures reliable performance in high-demand environments. Featuring reversible handing and adjustable mounting, it meets ANSI A156.3 Grade 2 and UL standards. Enhance safety and accessibility with this premium exit device.
Product Specifications
Accessories Accessories
Item# - 19-568Item Name - Rim CylinderFinish - AluminumItem# - 19-568BZItem Name - Rim CylinderFinish - BronzeItem# - 19-749Item Name - Pull TrimFinish - AluminumItem# - 19-750Item Name - Dummy Pull TrimFinish - AluminumItem# - 19-1034ALItem Name - Entry BallFinish - AluminumItem# - 19-604ALItem Name - Entry LeverFinish - AluminumItem# - 19-619ALItem Name - Storeroom LeverFinish - AluminumItem# - 19-618ALItem Name - Passage LeverFinish - AluminumItem# - 19-752Item Name - Night Latch Handle SetFinish - AluminumItem# - 19-753Item Name - Dummy Handle SetFinish - AluminumItem# - 19-1038ALItem Name - Entry Handle SetDescription - with CylinderFinish - AluminumItem# - 19-1035ALItem Name - Entry Handle SetDescription - no CylinderFinish - AluminumItem# - 19-751Item Name - Exit Only PlateFinish - Aluminum
Features Features

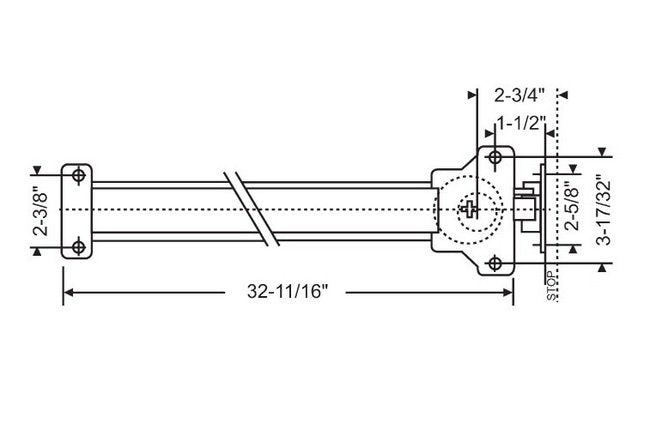

Material: Extruded anodized aluminum push bar, stainless steel springsLatch: Stainless Steel, 3/4" throw - 5/8" dead latchBackset: 2-3/4" Covers 161 prep, includes latch & Strike filler platesStrike: Surface mounted for 5/8" stop with shimProjection: 2-1/2" - 1-7/8" doggedStile: 4-1/4" minimumHanding: Reversible, non-handedDoor Thickness: 1-3/4" standardDoor Width: 36", can be field sized to 30"Mounting Height: Recommended installation at 41" from finished floor to center line of push rail.Fasteners: Furnished with sheet metal and machine screwsDogging: 1/2 turn hex keyCylinder Not Included (order separately)
Specifications Finish
Bronze
Specifications Industry Standards
American National Standards Institute (ANSI) A156.3 Grade 2 | Underwriters Laboratories (UL) Listed
