Bronze Vented Ball Valve - Threaded End, 150 PSI

Bronze Vented Ball Valve - Threaded End, 150 PSI

VAL-41abd3

Reliable Cast Bronze Ball Valve with maintenance-free seals, blowout-proof stem, and PTFE seats for industrial applications.

$42.99
$42.99
Sale

Initiate Order

Bronze Vented Ball Valve - Threaded End, 150 PSI

Bronze Vented Ball Valve - Threaded End, 150 PSI

$42.99

Quantity: 1

Claim Your Seller Account

Bronze Vented Ball Valve - Threaded End, 150 PSI

Bronze Vented Ball Valve - Threaded End, 150 PSI

$42.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Cast Bronze Ball Valve is designed for reliable performance in industrial applications. With a maintenance-free double O-ring stem seal, blowout-proof stem, and PTFE seats, this valve ensures long-term durability. Featuring a full port and chrome-plated vented ball, it offers ease of flow control and corrosion resistance. Pressure-rated for 150 PSI with threaded ends, this valve complies with MSS-SP 110 standards and is suitable for a wide range of industrial settings.

Product Specifications

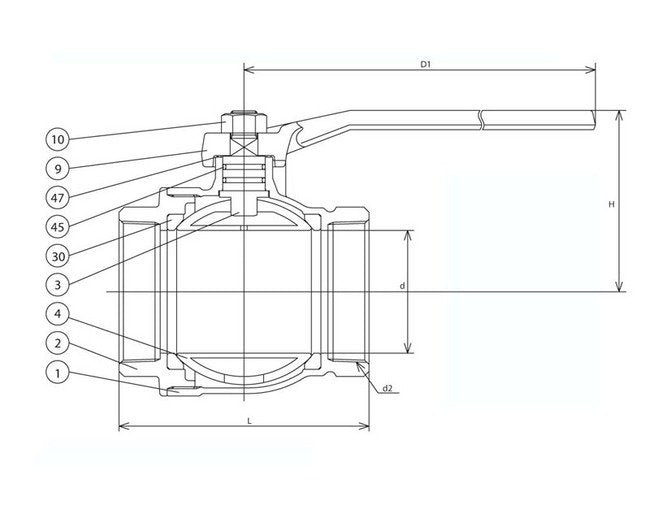

Material List 0
No. Name of Part Specification 1 Body Forged Brass (B283, C37700) (4") Cast Bronze (B584, C84400) 2 Body Cap Forged Brass (B283, C37700) (4") Cast Bronze (B584, C84400) 3 Stem Brass Rod (B16) (Ni Plating) 4 Ball (Vented) Forged Brass (Ni-Cr Plating) 9 Handle Ductile Iron 10 Handle Nut Carbon Steel 16 Name Plate Aluminum 30 Ball Seats PTFE 45 O-rings FPM 47 Thrust Washer PTFE
Specifications Approx Net Wt
19.00
Specifications Carton Qty
2
Specifications Class
AKSZA
Specifications Dimension D
2.56
Specifications Dimension D1
7.87
Specifications Dimension D1 Max
2.633
Specifications Dimension D1 Min
2.628
Specifications Dimension D2
2 1/2 inches
Specifications Dimension H
3.93
Specifications Dimension L
5.43
Specifications Dimension L1
3.51
Specifications End Size
Threaded
Specifications Material
Bronze
Specifications Pressuretemperature
150 PSI - Saturated Steam to 366°F | 600 PSI - Non-Shock Cold Water, Oil or Gas
Specification 0
Approved valve shall have two piece forged brass body , blowout proof stem (Ni Plated), PTFE seats, maintenance free double o-ring stem seals, chrome plated ball and full port design. Valves shall be pressure rated to 150 WSP/600 WOG and conform to MSS-SP 110.KITZ Code No. 58 (AKSZA) Threaded Ends59 (CSZA) Solder Ends
Standard 0
End to End KITZ Standard End Connections Threaded ASME B1.20.1 Solder Joint ASME B16.18 Wall Thickness KITZ Standard Conforms to Mss-SP 110 - Replaces us. FED. SPEC.WWW-35B, Type II, Class A, Type 3
