Bronze Wafer Disc Check Valve
Bronze Wafer Disc Check Valve
SKU:VAL-bae4c7
High-performance Bronze Wafer Disc Check Valve for precise flow control in institutional settings. Compliant with DIN3202 K4 standards.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
Bronze Wafer Disc Check Valve
$89.99
Quantity: 1
Claim Your Seller Account
Bronze Wafer Disc Check Valve
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Bronze Wafer Disc Check Valve is a reliable solution for controlling flow with precision. Constructed with B-5842 bronze body, stainless steel disc, and AISI 316 L spring components, this valve ensures durability and optimal performance. Compliant with DIN3202 K4 standards, it offers seamless face-to-face installation according to industry regulations, making it an ideal choice for institutional applications requiring high-quality valves.

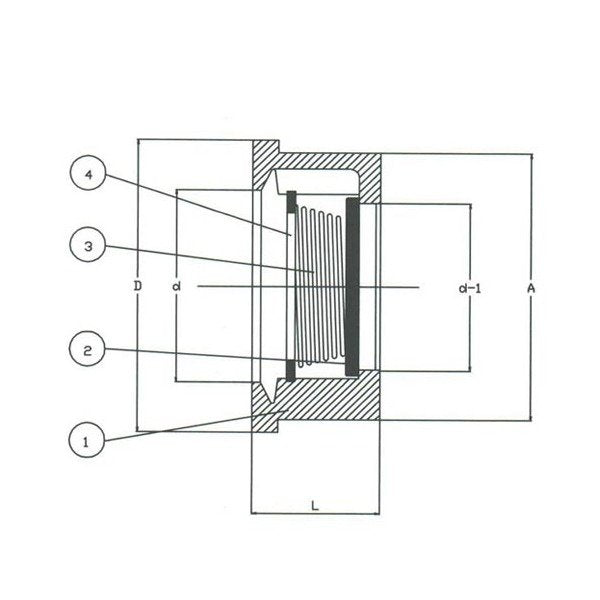

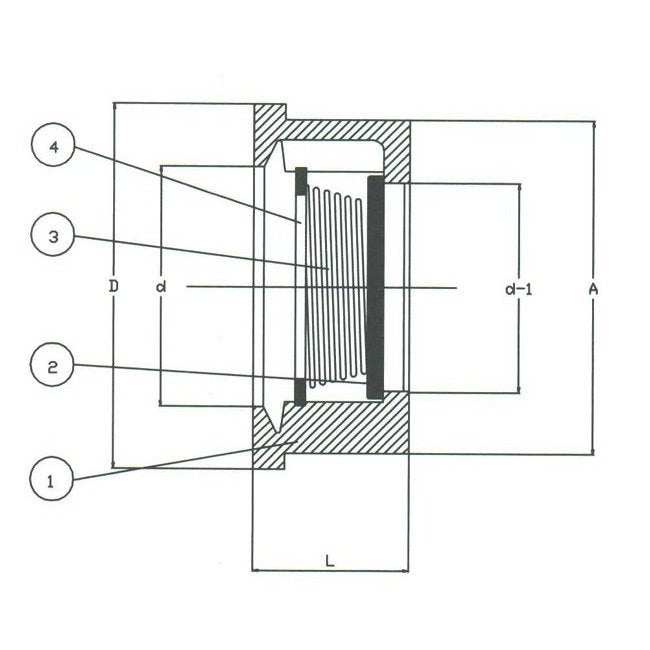

Product Specifications
Specifications A
126 mm
Specifications Actuators
Spring
Specifications Body Material
Bronze
Specifications D
144 mm
Specifications D1
77 mm
Specifications Disc Material
Stainless Steel
Specifications L
50 mm
Specifications Seat Material
Stainless Steel
Specifications Size
080
Specifications Stem Material
Stainless Steel
Specifications Weight
2.10 kg
