Bronze Wafer Disc Check Valve 80mm (Size 050)
Bronze Wafer Disc Check Valve 80mm (Size 050)
SKU:VAL-21bfd5
Premium Bronze Wafer Disc Check Valve with Stainless Steel components for reliable performance.
Regular price
$79.99
Regular price
Sale price
$79.99
Unit price
per
Initiate Order
Bronze Wafer Disc Check Valve 80mm (Size 050)
$79.99
Quantity: 1
Claim Your Seller Account
Bronze Wafer Disc Check Valve 80mm (Size 050)
$79.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Bronze Wafer Disc Check Valve is a high-quality valve designed for optimal performance. Featuring a Bronze body and Stainless Steel disc, seat, and stem materials, this valve offers superior durability and corrosion resistance. The valve is equipped with a Stainless Steel spring for precise operation and a spring stop ring for added safety. Meeting the face-to-face dimensions according to DIN3202 K4, this valve ensures compatibility with industry standards for seamless integration into various systems.

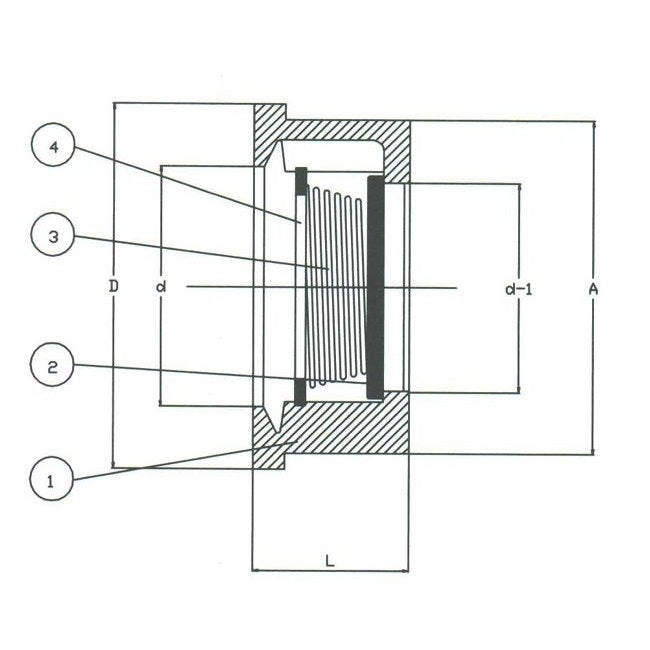

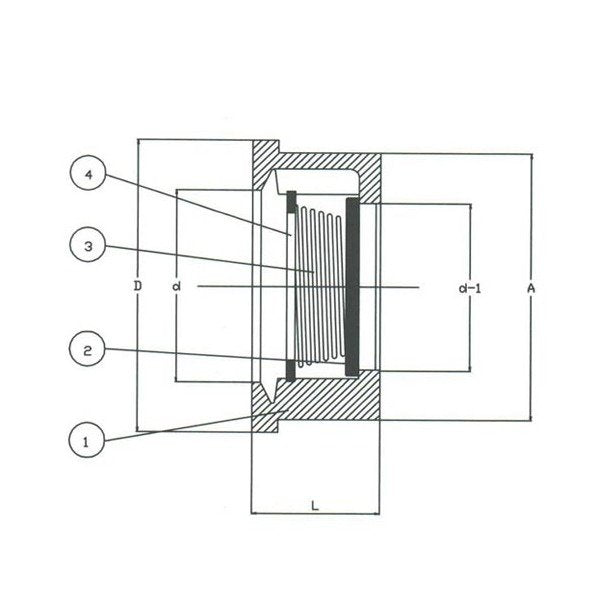

Product Specifications
Specifications A
89 mm
Specifications Actuators
Spring
Specifications Body Material
Bronze
Specifications D
107 mm
Specifications D1
47 mm
Specifications Disc Material
Stainless Steel
Specifications L
40.0 mm
Specifications Seat Material
Stainless Steel
Specifications Size
050
Specifications Stem Material
Stainless Steel
Specifications Weight
0.90 kg
