Bronze Y-Pattern Check Valve, 63.50mm, 300 lb SWP
Bronze Y-Pattern Check Valve, 63.50mm, 300 lb SWP
SKU:VAL-26f5dd
Durable Bronze Check Valve, 300 lb SWP, Threaded Ends, MSS SP-80 Type 3, Class 300
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Bronze Y-Pattern Check Valve, 63.50mm, 300 lb SWP
$129.99
Quantity: 1
Claim Your Seller Account
Bronze Y-Pattern Check Valve, 63.50mm, 300 lb SWP
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Check IB949 Horizontal Swing Valve in Bronze is expertly crafted to meet demanding industrial standards. With a working pressure of 300 lb SWP and a maximum temperature of 425°F, this valve ensures reliable performance under high-pressure conditions. The Y-Pattern design with a regrinding disc enhances durability, while the threaded ends provide easy installation. Conforming to MSS SP-80 Type 3 Class 300, this valve is meticulously engineered for long-lasting use in critical applications.
Product Specifications

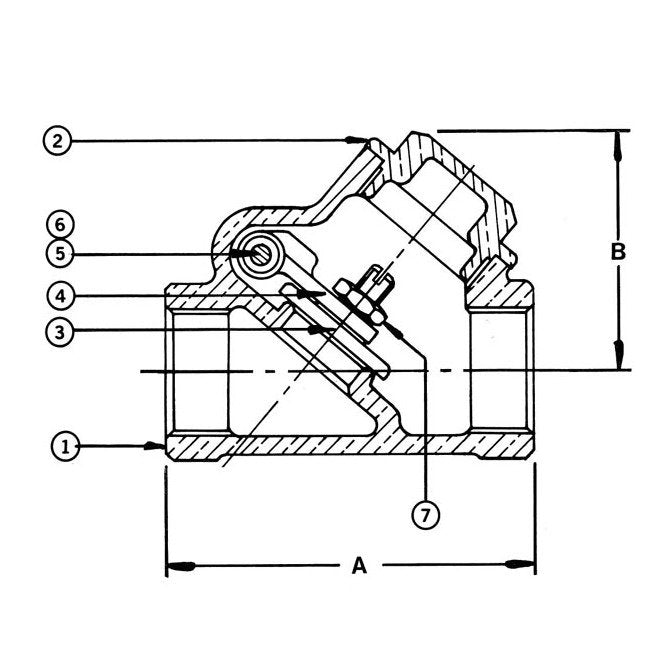

Material List 0
No. Â Part Material Specification 1 Body Cast Bronze ASTM B 61 2 Cap Cast Bronze ASTM B 61 3 Disc Cast Bronze ASTM B 61 4 Lever Cast Bronze ASTM B 61 5 Pin St. Steel Commercial 6 Plug Rod Brass ASTM B 16 7 Disc Nut Rod Brass ASTM B 16
Specifications Dimension A
177.80 mm
Specifications Dimension B
120.65 mm
Specifications Material
Bronze
Specifications Size
63.50 mm
