Bronze Y-Pattern Swing Type Disc Check Valve - Class 125, Solder End, 1-inch
Bronze Y-Pattern Swing Type Disc Check Valve - Class 125, Solder End, 1-inch
SKU:VAL-15dc5e
Reliable Class 125 Bronze Check Valve with Y-Pattern Swing Disc for various fluid applications.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Bronze Y-Pattern Swing Type Disc Check Valve - Class 125, Solder End, 1-inch
$34.99
Quantity: 1
Claim Your Seller Account
Bronze Y-Pattern Swing Type Disc Check Valve - Class 125, Solder End, 1-inch
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Bronze Y-Pattern Swing Type Disc Check Valve, designed for Class 125 applications, features a screw cap and integral seat for reliable performance. With end size specified for soldering, this valve can handle pressures up to 125 PSI for fluids, saturated steam up to 353°F, and non-shock cold water, oil, or gas at 200 PSI. Crafted from high-quality bronze material, this valve comes with precision dimensions and meets industry standards such as ANSI B1.20.1, ANSI B16.18, MSS SP-80 Type 3 design, and is compliant with military specifications.
Product Specifications
Material List 0
No. Name Of Part Specification 1 Body Cast Bronze (ASTM B62) 2 Cap Forged Brass (B283, C37700) 4 Disc Cast Bronze (ASTM B62) 17 Hinge Pin Copper 18 Plug Brass Rod (B16)
Specifications Approx Net Wt
1.33
Specifications Carton Qty
48
Specifications Class
CYR

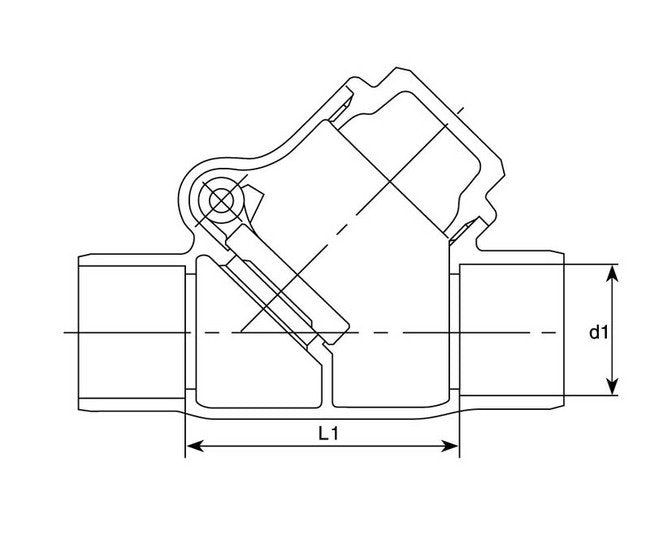

Specifications Dimension D1 Max
1.132
Specifications Dimension D1 Min
1.128
Specifications Dimension D2
1 inches
Specifications Dimension H
2.28
Specifications Dimension L
3.15
Specifications Dimension L1
2.31
Specifications End Size
Solder
Specifications Material
Bronze
Specifications Pressuretemperature
125 PSI - Fluid to 406°F | 125 PSI - Saturated Steam to 353°F | 200 PSI - Non-Shock Cold Water, Oil or Gas
Standard 0
End to End KITZ Threaded Ends ANSI B1.20.1 Solder Joint Ends ANSI B16.18 Design MSS SP-80, TYPE 3 Military MSS SP-80, TYPE 3
