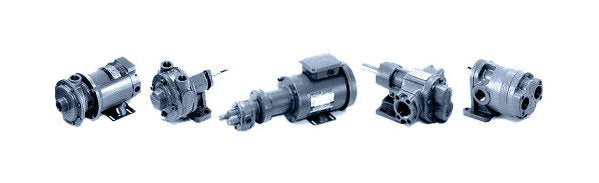

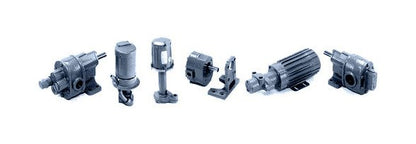

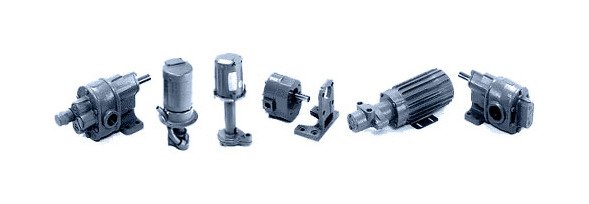

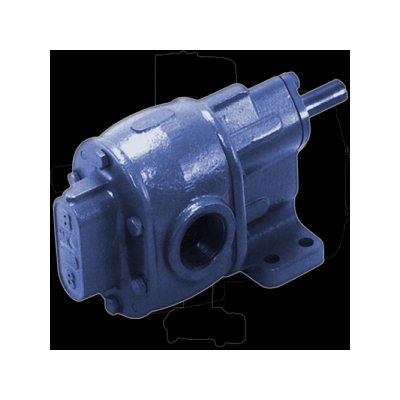

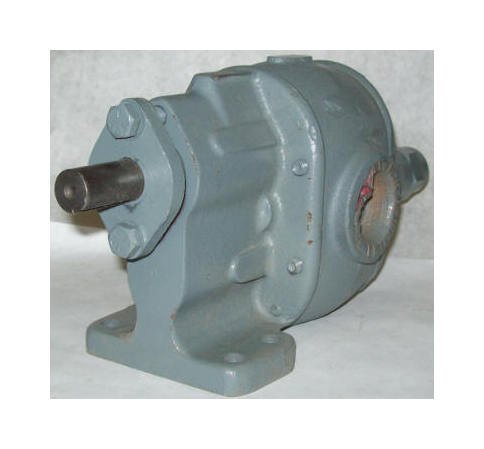

Brown & Sharpe Gear Pump - High Precision Rotary Pump
Brown & Sharpe Gear Pump - High Precision Rotary Pump
SKU:POS-dd063a
Brown & Sharpe Gear Pump - Reliable rotary pump for precise fluid transfer.
Regular price
$1,499.99
Regular price
Sale price
$1,499.99
Unit price
per
Initiate Order
Brown & Sharpe Gear Pump - High Precision Rotary Pump
$1,499.99
Quantity: 1
Claim Your Seller Account
Brown & Sharpe Gear Pump - High Precision Rotary Pump
$1,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Brown & Sharpe Gear Pump delivers exceptional performance and reliability. Manufactured by Brown & Sharpe, this rotary pump features a precise helical & spur gear design. Constructed with durable materials including Cast Iron with Hardened Steel, Bronze with Stainless Steel, or All Stainless Steel options, it ensures longevity and efficient operation. With a maximum flow rate of 23.2 GPM, maximum pressure of 200 psi, and a variety of seal material options such as Buna, FEP, or Viton, this pump is versatile and adaptable to various applications. Equipped with options for internal bypass relief valves, packing or mechanical seal configurations, and various motor drive types, including AC Motor, this pump is designed to meet the highest standards of performance and reliability.
Product Specifications
Specifications Driver
AC Motor
Specifications Gal Rev
0.013
Specifications Gpm Max
23.2 gpm
Specifications Housing Material
Cast Iron
Specifications Hp
2
Specifications Hz
60
Specifications Manufacturer
Brown & Sharpe
Specifications Max Pressure Psi
200 psi
Specifications Motor Enclosure
TEFC
Specifications Phase
1 | 3
Specifications Port
1 in
Specifications Port Config
Inline
Specifications Port Type
FNPT
Specifications Relief Valve
RV | WRV
Specifications Rotation
CCW | CW
Specifications Rpm Max
1750
Specifications Seal Material
Buna | FEP | Viton
Specifications Voltage
208-230/460V
