Brown & Sharpe Helical & Spur Gear Pumps

Name: Brown & Sharpe Helical & Spur Gear Pumps
Brand: AB Industrial
SKU: POS-7ee1bc
Price: 499.99 USD
Availability: OutOfStock

SKU:POS-7ee1bc

High precision gear pumps for industrial applications, offering reliability and versatility.

$499.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

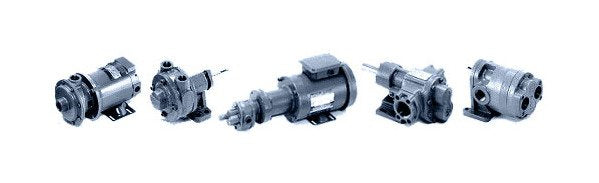

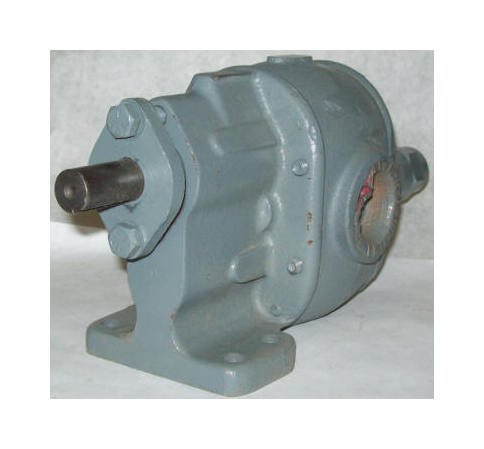

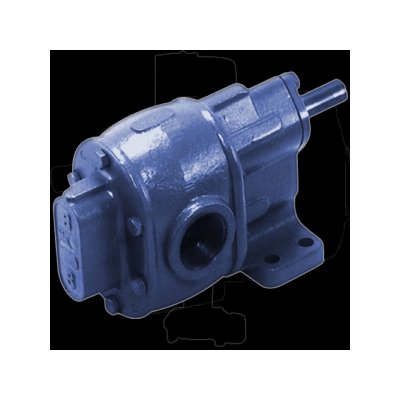

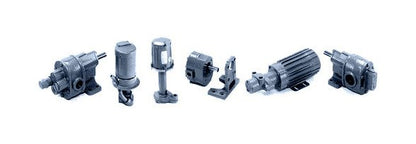

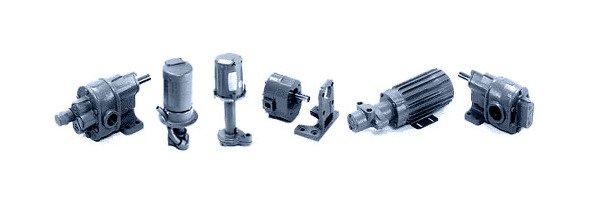

The Brown & Sharpe Helical & Spur Gear Pumps offer high precision and reliability, featuring standard construction with Cast Iron, Bronze, or Stainless Steel materials. Available in sizes 3/8 to 4 inches, these pumps can be equipped with Internal Bypass Relief Valves and different seal options to suit varying applications. With a range of motor types, housing materials, and configurations, these pumps are versatile and durable, making them ideal for diverse industrial settings.

Product Specifications

Specifications Coupling

Flex

Specifications Driver

AC Motor | Air Motor | DC Motor | Hydraulic Motor

Specifications Gal Rev

0.003

Specifications Gpm Max

4.5 gpm

Specifications Housing Material

Cast Iron

Specifications Hp

1 | 1/2 | 1/3 | 3/4

Specifications Hz

50 | 60 | DC

Specifications Manufacturer

Brown & Sharpe

Specifications Max Pressure Psi

200 psi

Specifications Motor Enclosure

Explosion Proof | Hostile Duty | Stainless Steel | TEFC | Washdown

Specifications Phase

1 | 3

Specifications Port

3/8 in

Specifications Port Config

Inline

Specifications Port Type

FNPT

Specifications Relief Valve

RV | WRV

Specifications Rotation

CCW | CW

Specifications Rpm Max

1750

Specifications Seal Material

Buna | FEP | Viton

Specifications Voltage

110 | 12 | 180 | 190 | 200 | 230 | 24 | 380 | 460 | 575 | 90

Brown & Sharpe Helical & Spur Gear Pumps
