Brown & Sharpe Helical & Spur Gear Pumps
Brown & Sharpe Helical & Spur Gear Pumps
SKU:POS-753264
Reliable & Precise Gear Pumps for High-Performance Demands. Ideal for Industrial Use.
Regular price
$699.99
Regular price
Sale price
$699.99
Unit price
per
Initiate Order
Brown & Sharpe Helical & Spur Gear Pumps
$699.99
Quantity: 1
Claim Your Seller Account
Brown & Sharpe Helical & Spur Gear Pumps
$699.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

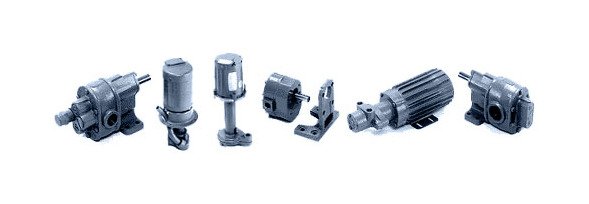

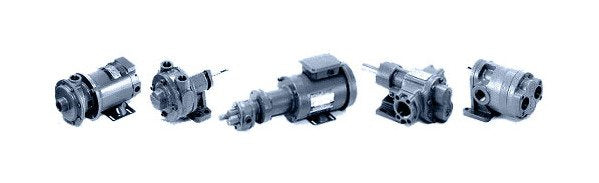

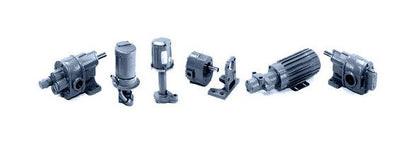

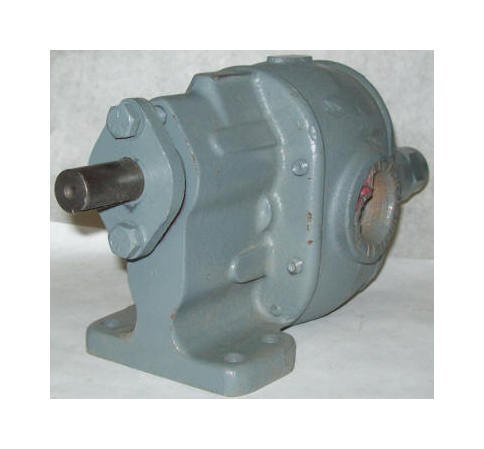

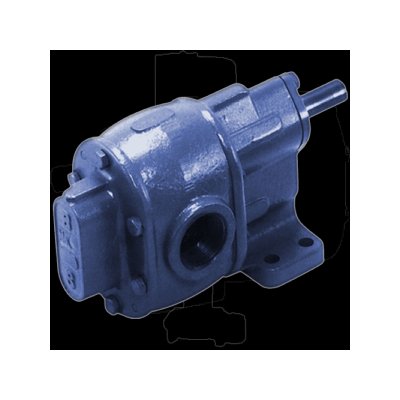

The Brown & Sharpe Helical & Spur Gear Pumps are meticulously designed for high precision and long-term reliability. Constructed with top-quality materials like Cast Iron with Hardened Steel and Bronze with Stainless components, these pumps are available in sizes ranging from 3/8 to 4 inches FNPT. Featuring options such as Internal Bypass Relief Valves, multiple seal material choices including Buna, FEP, and Viton, and a variety of motor drive types, these pumps cater to diverse industrial needs. With a maximum flow rate of 1 GPM, maximum pressure of 2000 PSI, and compatibility with AC, DC, air, or hydraulic motors, these pumps deliver exceptional performance in various applications.
Product Specifications
Specifications Coupling
Flex
Specifications Driver
AC Motor | Air Motor | DC Motor | Hydraulic Motor
Specifications Gal Rev
0.001
Specifications Gpm Max
1 gpm
Specifications Housing Material
Cast Iron
Specifications Hp
1 | 1/2 | 1/3 | 1-1/2 | 2 | 3/4
Specifications Hz
50 | 60 | DC
Specifications Manufacturer
Brown & Sharpe
Specifications Max Pressure Psi
2000 psi
Specifications Motor Enclosure
Explosion Proof | Hostile Duty | Stainless Steel | TEFC | Washdown
Specifications Phase
1 | 3
Specifications Port
3/8 in
Specifications Port Config
Inline
Specifications Port Type
FNPT
Specifications Relief Valve
WRV
Specifications Rotation
CCW | CW
Specifications Rpm Max
1725
Specifications Seal Material
Buna | FEP | Viton
Specifications Voltage
110 | 12 | 180 | 190 | 200 | 230 | 24 | 380 | 460 | 575 | 90
