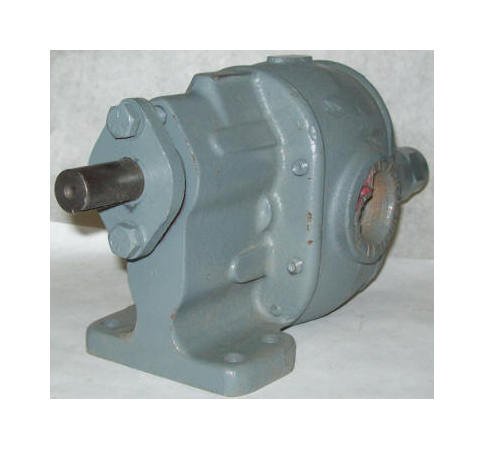

Brown & Sharpe Precision Gear Pump

Name: Brown & Sharpe Precision Gear Pump
Brand: AB Industrial
SKU: POS-ac2fdb
Price: 2299.99 USD
Availability: OutOfStock

SKU:POS-ac2fdb

Reliable Brown & Sharpe Precision Gear Pump with 31.1 GPM, 500 psi max pressure, and versatile motor options for various applications.

$2,299.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Brown & Sharpe Precision Gear Pump is a high-precision solution for positive displacement needs. Constructed with durable materials including cast iron, hardened steel, and bronze with stainless components, this pump offers reliability and longevity. With a maximum flow rate of 31.1 GPM, max pressure of 500 psi, and versatile motor options including AC, DC, and hydraulic, this pump is suitable for various applications. Whether it's the internal bypass relief valves, multiple port configurations, or flexible coupling options, this gear pump is designed to meet stringent institutional procurement standards.

Product Specifications

Specifications Coupling

Flex

Specifications Driver

AC Motor | Air Motor | DC Motor | Hydraulic Motor

Specifications Gal Rev

0.027

Specifications Gpm Max

31.1 gpm

Specifications Housing Material

Cast Iron

Specifications Hp

10 | 2 | 3 | 5 | 7-1/2

Specifications Hz

50 | 60 | DC

Specifications Manufacturer

Brown & Sharpe

Specifications Max Pressure Psi

500 psi

Specifications Motor Enclosure

Explosion Proof | Hostile Duty | Stainless Steel | TEFC | Washdown

Specifications Phase

1 | 3

Specifications Port

1 1/2 in

Specifications Port Config

Multiple

Specifications Port Type

FNPT

Specifications Relief Valve

RV | WRV

Specifications Rotation

CCW | CW

Specifications Rpm Max

1140

Specifications Seal Material

Buna | FEP | Viton

Specifications Voltage

110 | 12 | 180 | 190 | 200 | 230 | 24 | 380 | 460 | 575 | 90

Brown & Sharpe Precision Gear Pump
