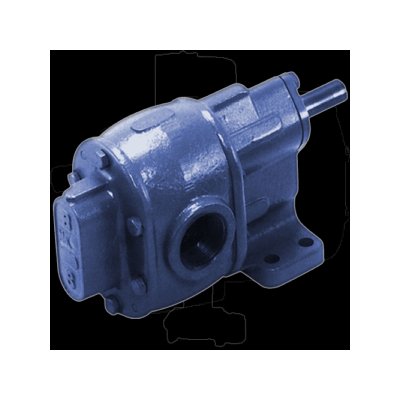

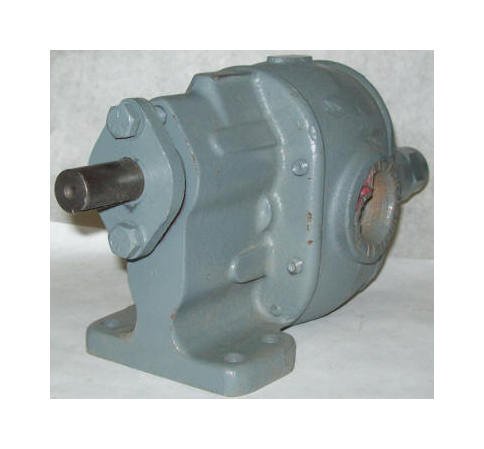

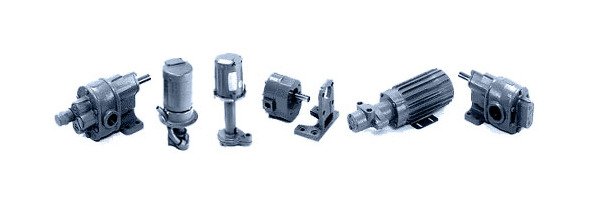

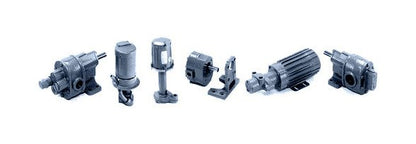

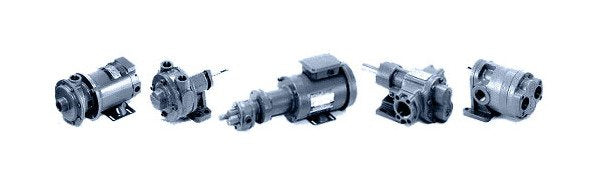

Brown & Sharpe Precision Gear Pumps

Name: Brown & Sharpe Precision Gear Pumps
Brand: AB Industrial
SKU: POS-2c4d89
Price: 999.99 USD
Availability: OutOfStock

SKU:POS-2c4d89

High-precision Brown & Sharpe Gear Pumps for reliable performance in diverse applications. Maximum flow rate of 16.2 GPM with a sturdy construction.

$999.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Brown & Sharpe Precision Gear Pumps are renowned for their high precision helical and spur gear design, ensuring exceptional reliability. Constructed with premium materials such as Cast Iron with Hardened Steel and Bronze with Stainless Steel, these pumps range from 3/8 to 4 inches FNPT, offering versatility for various applications. Featuring options like Internal Bypass Relief Valves, different sealing mechanisms, and a choice of motor types including TEFC, Wash Down Duty, and Stainless Steel, these gear pumps provide reliable performance and durability. Suitable for a wide range of industries, they deliver a maximum flow rate of 16.2 GPM and handle pressures up to 200 psi effectively.

Product Specifications

Specifications Gal Rev

0.009

Specifications Gpm Max

16.2 gpm

Specifications Housing Material

Cast Iron

Specifications Manufacturer

Brown & Sharpe

Specifications Max Pressure Psi

200 psi

Specifications Phase

1 | 3

Specifications Port

3/4 in

Specifications Port Config

Inline

Specifications Port Type

FNPT

Specifications Relief Valve

WRV

Specifications Rotation

CCW

Specifications Rpm Max

1725

Specifications Seal Material

Buna | FEP | Viton

Brown & Sharpe Precision Gear Pumps
