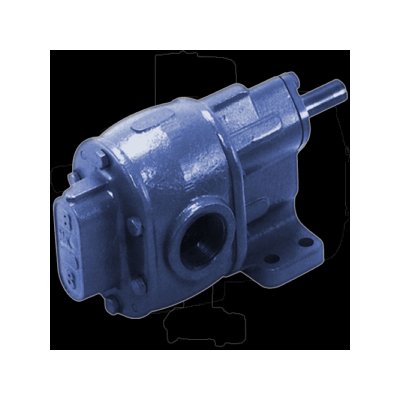

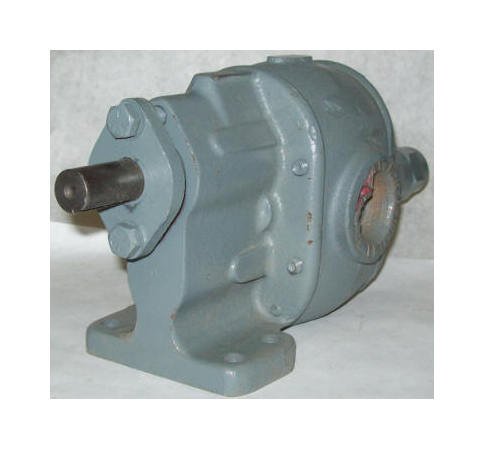

Brown & Sharpe Precision Rotary Gear Pump

Name: Brown & Sharpe Precision Rotary Gear Pump
Brand: AB Industrial
SKU: POS-adc26b
Price: 799.99 USD
Availability: OutOfStock

SKU:POS-adc26b

Reliable & precise Brown & Sharpe gear pump with versatile configurations for diverse applications.

$799.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

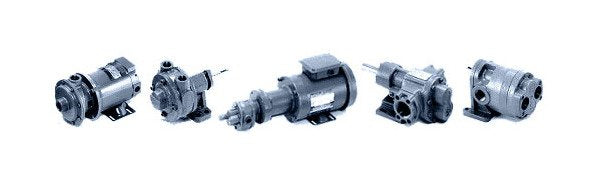

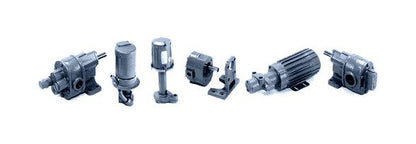

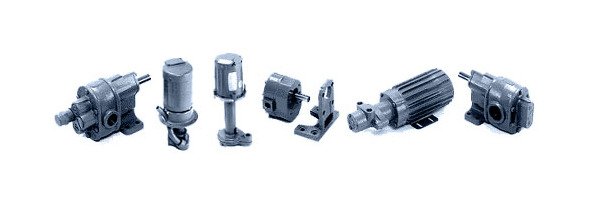

The Brown & Sharpe Precision Rotary Gear Pump boasts high precision and proven reliability, featuring a cast iron construction with hardened steel, bronze with stainless, and all stainless options. With sizes ranging from 3/8" to 4", this pump is equipped with companion flanges, internal bypass relief valves, and a choice of packing or mechanical seals to suit various applications. Offering flexible coupling or V-belt drive options with OSHA guard, this pump can be powered by TEFC, wash-down duty, stainless steel, IEEE841, or explosion-proof NEMA & IEC AC or DC electric motors. Suitable for air or hydraulic motor drives and available in close-coupled or foot mount configurations on a fabricated steel baseplate.

Product Specifications

Specifications Driver

AC Motor

Specifications Gal Rev

0.005

Specifications Gpm Max

9 gpm

Specifications Housing Material

Cast Iron

Specifications Hp

Specifications Hz

Specifications Manufacturer

Brown & Sharpe

Specifications Max Pressure Psi

200 psi

Specifications Motor Enclosure

TEFC

Specifications Phase

1 | 3

Specifications Port

1/2 in

Specifications Port Config

Inline

Specifications Port Type

FNPT

Specifications Relief Valve

RV | WRV

Specifications Rotation

CCW | CW

Specifications Rpm Max

1750

Specifications Seal Material

Buna | FEP | Viton

Specifications Voltage

208-230/460V

Brown & Sharpe Precision Rotary Gear Pump
