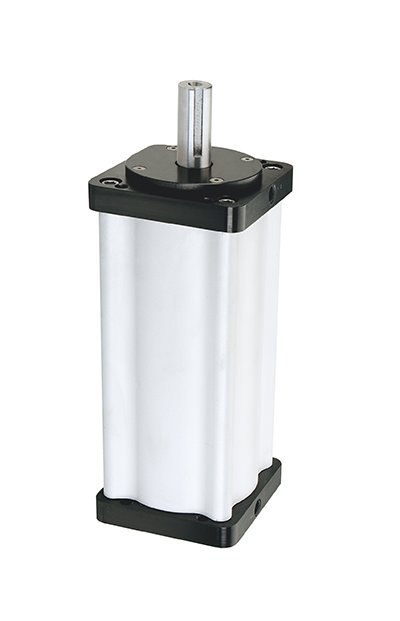

Brute 90° Rotary Vane Actuator with 3900 in·lb Torque
Brute 90° Rotary Vane Actuator with 3900 in·lb Torque
SKU:ROT-ebe3b3
Experience precision and power with the Brute 90° Rotary Vane Actuator, designed for industrial automation.
Regular price
$749.99
Regular price
Sale price
$749.99
Unit price
per
Initiate Order
Brute 90° Rotary Vane Actuator with 3900 in·lb Torque
$749.99
Quantity: 1
Claim Your Seller Account
Brute 90° Rotary Vane Actuator with 3900 in·lb Torque
$749.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Brute 90° Rotary Vane Actuator offers unmatched precision and reliability for industrial automation. Engineered by Compact Automation Products, this hydraulic/pneumatic actuator features a single rotary vane design, providing smooth rotation, precise repeatability, and continuous full torque throughout its 90-degree rotation. With patented urethane seals ensuring long cycle life and maintenance-free operation, this actuator is perfect for applications demanding high performance and durability.
Product Specifications
Features Features
Stop Cushioning (Optional)Position Feedback (Optional)25 base Comp-Act®'s with torque outputs from 400 in.lbs to 5200 in.lbs.Standard rotations 90, 110, 180, 270, & 290 degreesOne moving part providing:Zero Backlash.No loss of motionSmooth RotationPrecise RepeatabilityContinuous full torque throughout the rotationPatented Urethane seals for:Long cycle life and non-lube serviceActual applications with 25 million cycles and more100's of standard options and modifications
Specifications Actuator Style
Rotary Vane (Single)
Specifications Body Material
Aluminum
Specifications Length
11.64 in
Specifications Maximum Torque
3900 in·lb
Specifications Number Of Shafts
Single Shaft
Specifications Operating Pressure Range High
200 psi
Specifications Operating Pressure Range Low
15 psi
Specifications Operating Temperature High
180 ºF
Specifications Operating Temperature Low
-20 ºF
Specifications Other Bore Size
5 in
Specifications Physical Dimensions
5.98 in²
Specifications Rotational Output
Shaft
Specifications Rotation Angle
90 º | Indexing/Multi-Position (Optional)
Specifications Shaft Length Or Table Height
3 in
Specifications Shaft Or Table Diameter
1.25 in
Specifications Technology Type
Hydraulic (Optional) | Pneumatic
