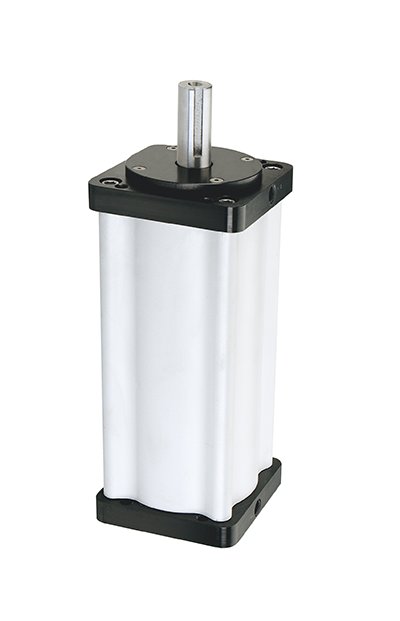

Brute Rotary Vane Actuator - 110 Degree Rotation, 3900 in·lb Torque
Brute Rotary Vane Actuator - 110 Degree Rotation, 3900 in·lb Torque
SKU:ROT-1e133a
Experience precision and power with the Brute Rotary Vane Actuator - 110° rotation, 3900 in·lb torque for efficient operations.
Regular price
$769.99
Regular price
Sale price
$769.99
Unit price
per
Initiate Order
Brute Rotary Vane Actuator - 110 Degree Rotation, 3900 in·lb Torque
$769.99
Quantity: 1
Claim Your Seller Account
Brute Rotary Vane Actuator - 110 Degree Rotation, 3900 in·lb Torque
$769.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Brute Rotary Vane Actuator offers unparalleled precision and power with its 110-degree rotation angle and 3900 in·lb maximum torque. Designed by Compact Automation Products, this hydraulic or pneumatic actuator features a single rotary vane style for smooth and precise operation. With a durable aluminum body, patented urethane seals, and zero backlash performance, it ensures long cycle life and reliability even in demanding environments. This actuator is ideal for applications requiring indexing, multi-positioning, and high torque output with continuous full torque throughout the rotation.
Product Specifications
Features Features
Stop Cushioning (Optional)Position Feedback (Optional)25 base Comp-Act®'s with torque outputs from 400 in.lbs to 5200 in.lbs.Standard rotations 90, 110, 180, 270, & 290 degreesOne moving part providing:Zero Backlash.No loss of motionSmooth RotationPrecise RepeatabilityContinuous full torque throughout the rotationPatented Urethane seals for:Long cycle life and non-lube serviceActual applications with 25 million cycles and more100's of standard options and modifications
Specifications Actuator Style
Rotary Vane (Single)
Specifications Body Material
Aluminum
Specifications Length
11.64 in
Specifications Maximum Torque
3900 in·lb
Specifications Number Of Shafts
Single Shaft
Specifications Operating Pressure Range High
200 psi
Specifications Operating Pressure Range Low
15 psi
Specifications Operating Temperature High
180 ºF
Specifications Operating Temperature Low
-20 ºF
Specifications Other Bore Size
5 in
Specifications Physical Dimensions
5.98 in²
Specifications Rotational Output
Shaft
Specifications Rotation Angle
110 º | Indexing/Multi-Position (Optional)
Specifications Shaft Length Or Table Height
3 in
Specifications Shaft Or Table Diameter
1.25 in
Specifications Technology Type
Hydraulic (Optional) | Pneumatic
