BSP Parallel Bulkhead Connection Body - Carbon Steel

Name: BSP Parallel Bulkhead Connection Body - Carbon Steel
Brand: World Wide Metric, Inc.
SKU: FIT-69d93c
Price: 32.99 USD
Availability: OutOfStock

SKU:FIT-69d93c

Durable Bulkhead Connection Body for hydraulic systems. Carbon steel construction, DIN 2353 compliant. Ideal for male stud coupling setups.

$32.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

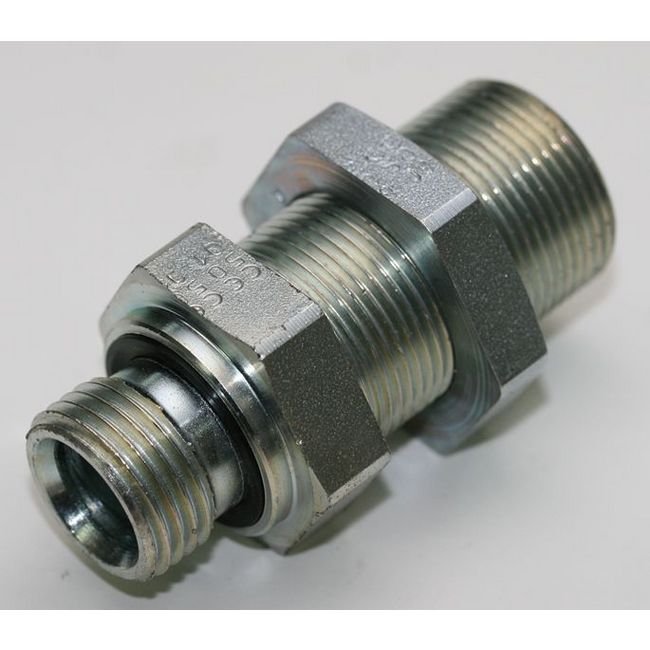

The Bulkhead Connection Body with Elastomer Seal Thread BSP Parallel is designed for light-duty applications with a nominal operating pressure of 160 bar. Constructed from high-quality carbon steel, this fitting ensures durability and reliability. With precise dimensions including Tube Diameter of 35.0mm and G-Thread Size of 1 1/4, it meets DIN 2353 standards for compression fittings. Ideal for straight male stud coupling setups, this body-only piece offers seamless integration and secure connections for various hydraulic systems.

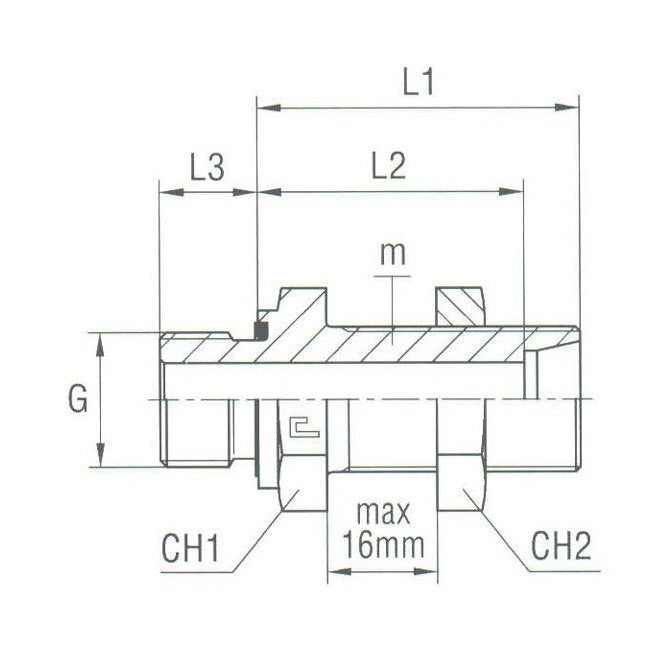

Product Specifications

Specifications Ch1

50 mm

Specifications Ch2

55 mm

Specifications G Thread Size

1 1/4

Specifications L1

63.0 mm

Specifications L2

52.5 mm

Specifications L3

20.0 mm

Specifications Material

Carbon Steel

Specifications M Thread Size

45x2

Specifications Nominal Operating Pressure

160 bar

Specifications Pressure

Light Duty

Specifications Standards

DIN 2353

Specifications Tube Diameter

35.0 mm

Category 6

Bulkhead Connection with Elastomer Seal Thread BSP Parallel

BSP Parallel Bulkhead Connection Body - Carbon Steel
