BSP Parallel Bulkhead Connection - Carbon Steel Body
BSP Parallel Bulkhead Connection - Carbon Steel Body
SKU:FIT-4baf10
Durable BSP Parallel Bulkhead Connection for 10.0 mm tubes, carbon steel body, DIN 2353 compliant.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
BSP Parallel Bulkhead Connection - Carbon Steel Body
$24.99
Quantity: 1
Claim Your Seller Account
BSP Parallel Bulkhead Connection - Carbon Steel Body
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

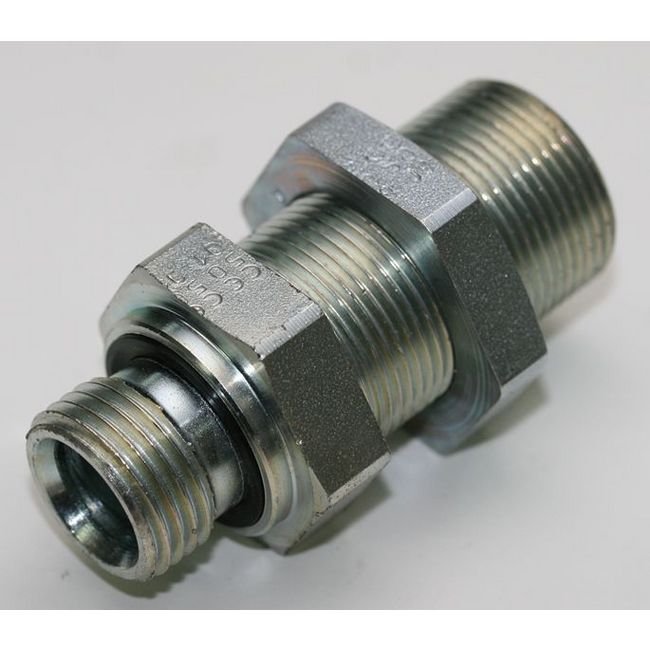

The BSP Parallel Bulkhead Connection with Elastomer Seal Thread Body Only is designed for light-duty applications with a nominal operating pressure of 315 bar. Made of high-quality carbon steel, this fitting ensures durability and reliability. Featuring precise dimensions and meeting DIN 2353 standards, it guarantees a secure and leak-free connection. Ideal for 10.0 mm tube diameters, this fitting is the perfect choice for a wide range of industrial and hydraulic systems.

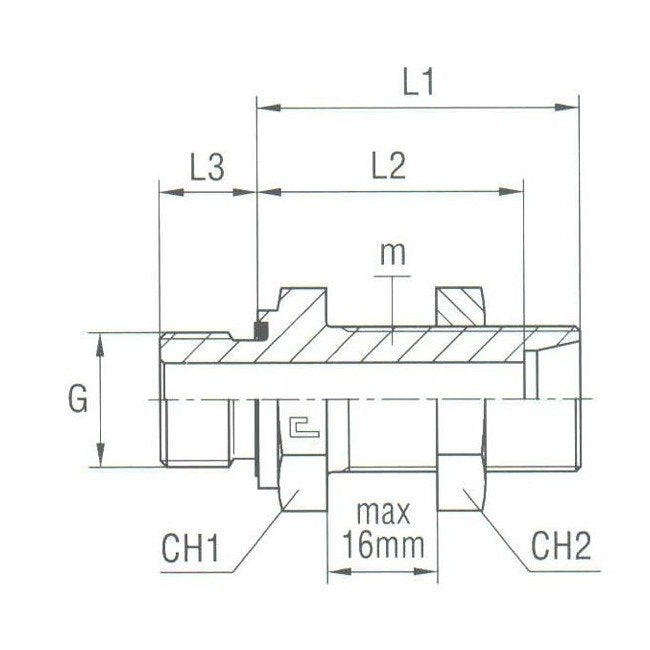

Product Specifications
Specifications Ch1
22 mm
Specifications Ch2
22 mm
Specifications G Thread Size
1/4
Specifications L1
43.0 mm
Specifications L2
36.0 mm
Specifications L3
12.0 mm
Specifications Material
Carbon Steel
Specifications M Thread Size
16x1.5
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
10.0 mm
Category 6
Bulkhead Connection with Elastomer Seal Thread BSP Parallel
