BSP Parallel Bulkhead Connection with Elastomer Seal - Carbon Steel
BSP Parallel Bulkhead Connection with Elastomer Seal - Carbon Steel
SKU:FIT-a184c5
Durable BSP Parallel Bulkhead Connection with Elastomer Seal suitable for light-duty applications. Carbon steel construction, DIN 2353 compliant.
Regular price
$22.99
Regular price
Sale price
$22.99
Unit price
per
Initiate Order
BSP Parallel Bulkhead Connection with Elastomer Seal - Carbon Steel
$22.99
Quantity: 1
Claim Your Seller Account
BSP Parallel Bulkhead Connection with Elastomer Seal - Carbon Steel
$22.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The BSP Parallel Bulkhead Connection with Elastomer Seal is designed for light-duty applications with a nominal operating pressure of 315 bar. Crafted from durable carbon steel, it features a tube diameter of 12.0 mm and meets DIN 2353 standards. With precise dimensions and an equipped B3 ring, this fitting ensures secure and reliable connections, making it ideal for industrial and institutional use.

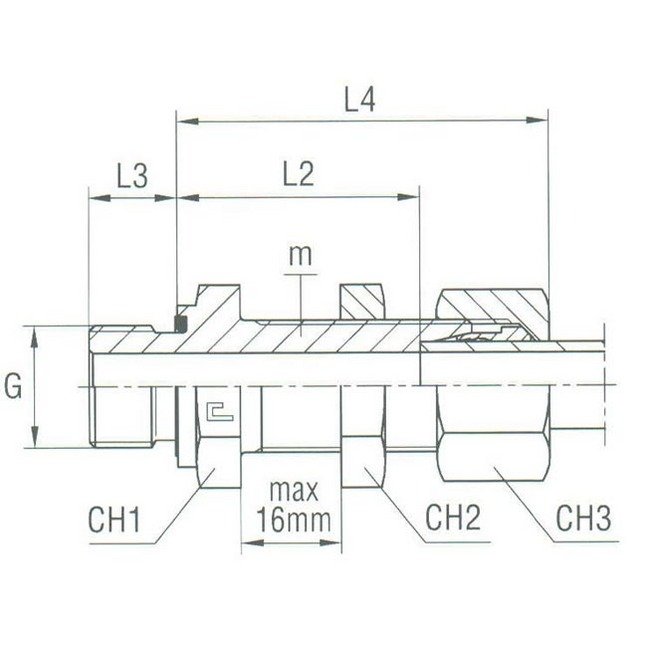

Product Specifications
Specifications Ch1
24 mm
Specifications Ch2
24 mm
Specifications Ch3
22 mm
Specifications G Thread Size
3/8
Specifications L2
37.5 mm
Specifications L3
12.0 mm
Specifications L4
52.5 mm
Specifications Material
Carbon Steel
Specifications M Thread Size
18x1.5
Specifications Nominal Operating Pressure
315 bar
Specifications Pressure
Light Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
12.0 mm
Category 6
Bulkhead Connection with Elastomer Seal Thread BSP Parallel
