BSP Parallel Female Tee Needle Valve

Name: BSP Parallel Female Tee Needle Valve
Brand: World Wide Metric, Inc.
SKU: FIT-bbd80e
Price: 45.99 USD
Availability: OutOfStock

SKU:FIT-bbd80e

High-performance hydraulic needle valve for precise control in hydraulic systems. Carbon Steel construction, various pressure options, 1/4 G-Thread Size.

$45.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

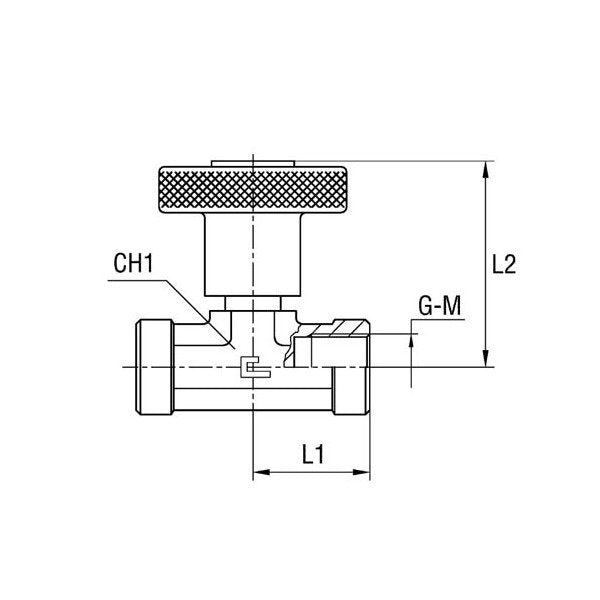

The BSP Parallel Female Tee Needle Valve is designed for superior performance in hydraulic systems, offering versatile pressure options from Extra Light Duty to Heavy Duty. With a Nominal Operating Pressure of 350 bar, this valve ensures reliable control and durability. Constructed from high-grade Carbon Steel, it guarantees long-lasting functionality. Ideal for hydraulic check valve applications, the valve features precise G-Thread Size of 1/4, with optimal dimensions of L1: 27.0 mm, L2: 50.0 mm, and CH1: 19.0 mm. Meet your hydraulic system needs with this high-quality valve.

Product Specifications

Specifications Ch1

19.0 mm

Specifications G Thread Size

1/4

Specifications L1

27.0 mm

Specifications L2

50.0 mm

Specifications Material

Carbon Steel

Specifications Nominal Operating Pressure

350 bar

Specifications Pressure

Extra Light Duty | Heavy Duty | Light Duty

BSP Parallel Female Tee Needle Valve
