BSP Parallel Male Stud Coupling with Equipped B3 Ring

BSP Parallel Male Stud Coupling with Equipped B3 Ring

FIT-bf4c09

Highly durable and pressure-resistant male stud coupling fitting meeting DIN 2353 standards.

$29.99
$29.99
Sale

Initiate Order

BSP Parallel Male Stud Coupling with Equipped B3 Ring

BSP Parallel Male Stud Coupling with Equipped B3 Ring

$29.99

Quantity: 1

Claim Your Seller Account

BSP Parallel Male Stud Coupling with Equipped B3 Ring

BSP Parallel Male Stud Coupling with Equipped B3 Ring

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

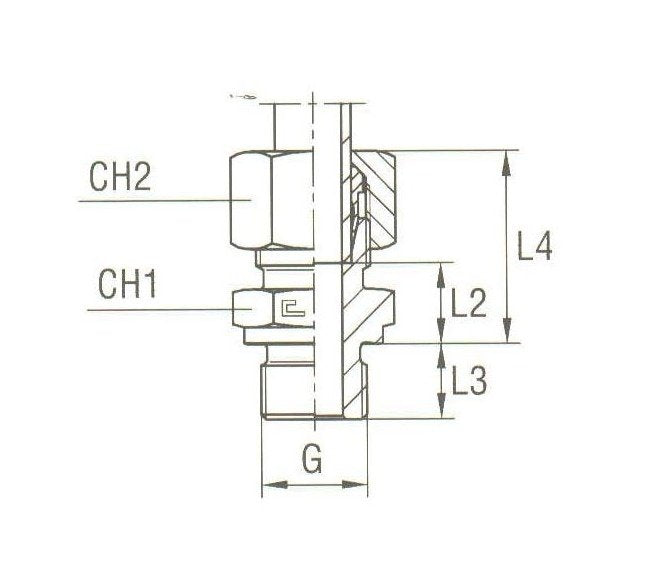

The BSP Parallel Male Stud Coupling with Equipped B3 Ring is designed for heavy-duty applications with a nominal operating pressure of 400 bar. Crafted from durable carbon steel, this fitting ensures reliable performance. With a tube diameter of 16.0 mm and G - Thread Size of 3/4, it meets DIN 2353 standards. Its precise dimensions including L2: 20.5 mm, L3: 16.0 mm, L4: 39.0 mm, CH1: 32 mm, and CH2: 30 mm make it suitable for various industrial setups.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Specifications Ch1
32 mm
Specifications Ch2
30 mm
Specifications G Thread Size
3/4
Specifications L2
20.5 mm
Specifications L3
16.0 mm
Specifications L4
39.0 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
400 bar
Specifications Pressure
Heavy Duty
Specifications Standards
DIN 2353
Specifications Tube Diameter
16.0 mm
Category 6
Male Stud Coupling Thread BSP Parallel
