BSP Parallel Male Stud Coupling with O-Ring - Carbon Steel, DIN 2353 Compliant
BSP Parallel Male Stud Coupling with O-Ring - Carbon Steel, DIN 2353 Compliant
SKU:FIT-9122de
High-quality BSP Parallel Male Stud Coupling with O-Ring for light duty applications, DIN 2353 compliant
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
BSP Parallel Male Stud Coupling with O-Ring - Carbon Steel, DIN 2353 Compliant
$49.99
Quantity: 1
Claim Your Seller Account
BSP Parallel Male Stud Coupling with O-Ring - Carbon Steel, DIN 2353 Compliant
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The BSP Parallel Male Stud Coupling with O-Ring is designed for light duty applications with a nominal operating pressure of 160 bar. Crafted from high-quality carbon steel, this coupling ensures durability and reliability. Featuring a generous G-Thread Size of 1 1/2 and a Tube Diameter of 42.0 mm, it comes equipped with an Elastometric Viton Seal for effective sealing. Compliant with DIN 2353 standards, this coupling guarantees superior performance in hydraulic systems.

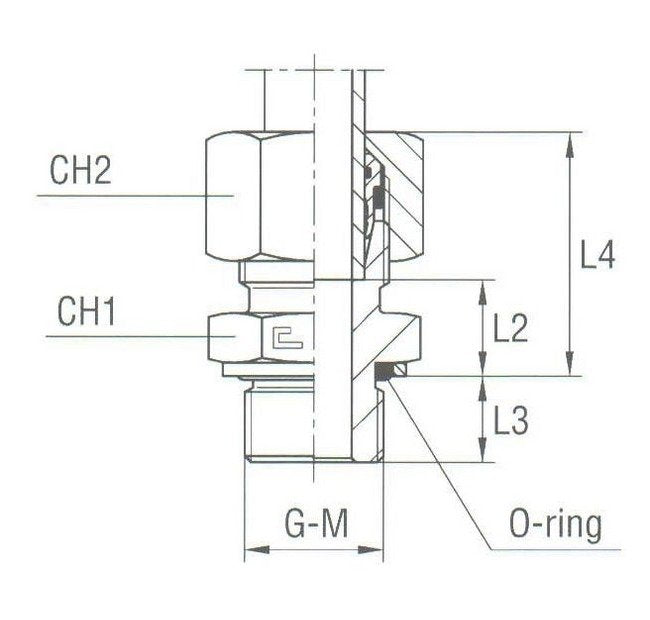

Product Specifications
Specifications Ch1
55 mm
Specifications Ch2
60 mm
Specifications G Thread Size
1 1/2
Specifications L2
19.1 mm
Specifications L3
19.4 mm
Specifications L4
42.1 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
160 bar
Specifications Pressure
Light Duty
Specifications Sealing
Elastometric Viton Seal
Specifications Standards
DIN 2353
Specifications Tube Diameter
42.0 mm
Category 6
Male Stud Coupling with O-Ring and Washer Thread BSP Parallel
