BSP Parallel Male Stud Non Return Valve with Elastomer Seal
BSP Parallel Male Stud Non Return Valve with Elastomer Seal
SKU:FIT-e4abf6
Durable BSP Parallel Male Stud Non Return Valve for hydraulic systems. Compliant with Federal standards.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
BSP Parallel Male Stud Non Return Valve with Elastomer Seal
$59.99
Quantity: 1
Claim Your Seller Account
BSP Parallel Male Stud Non Return Valve with Elastomer Seal
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The BSP Parallel Male Stud Non Return Valve with Elastomer Seal features heavy-duty construction and a nominal operating pressure of 250 bar, making it ideal for hydraulic systems. Its carbon steel material ensures durability, while the equipped B3 ring enhances sealing performance. With a tube diameter of 38.0 mm and other precise dimensions, this valve offers reliable performance in demanding applications. Compliant with Federal procurement standards and suitable for GSA requirements, this valve meets industry-specific certifications for quality assurance.

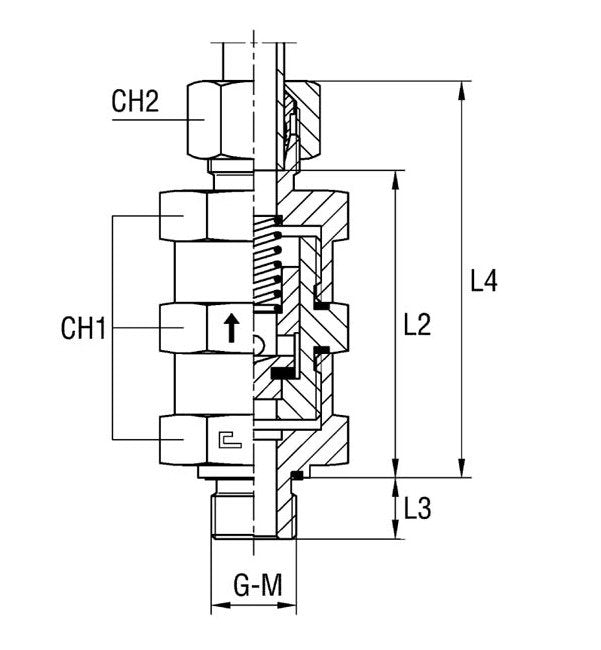

Product Specifications
Specifications Ch1
70 mm
Specifications Ch2
60 mm
Specifications Diameter Pass
29 mm
Specifications G Thread Size
1 1/2
Specifications L2
93 mm
Specifications L3
22.0 mm
Specifications L4
123.5 mm
Specifications Material
Carbon Steel
Specifications Nominal Operating Pressure
250 bar
Specifications Pressure
Heavy Duty
Specifications Tube Diameter
38.0 mm
