BSP Parallel Male Stud Non Return Valve with Elastomer Seal
BSP Parallel Male Stud Non Return Valve with Elastomer Seal
SKU:FIT-feb779
High-quality BSP Parallel Male Stud Non Return Valve for hydraulic systems. Nominal pressure of 350 bar, stainless steel construction, and reliable performance across light to heavy duty applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
BSP Parallel Male Stud Non Return Valve with Elastomer Seal
$49.99
Quantity: 1
Claim Your Seller Account
BSP Parallel Male Stud Non Return Valve with Elastomer Seal
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

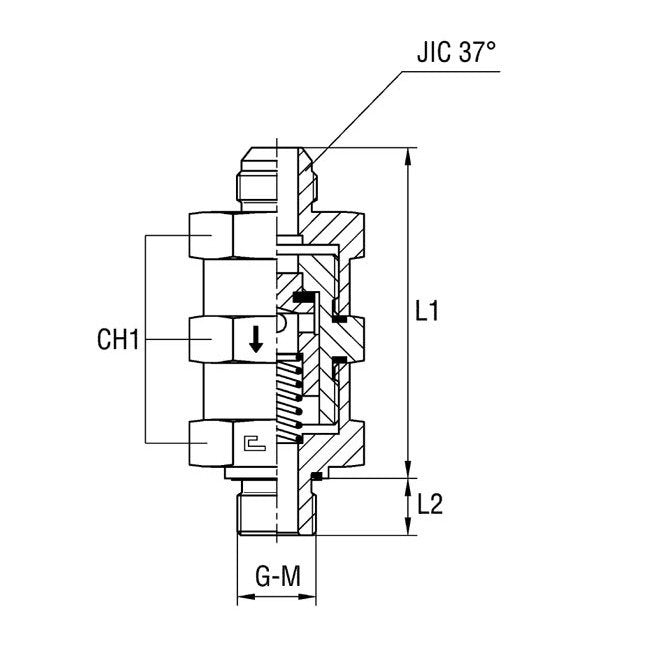

The BSP Parallel Male Stud Non Return Valve with Elastomer Seal is a high-quality hydraulic check valve designed to meet demanding industry standards. With a nominal operating pressure of 350 bar, stainless steel construction, and various tube diameter options, this valve ensures reliable performance in extra light duty, heavy duty, and light duty applications. Its precise dimensions, including L1 at 90.9mm and Diameter Pass. at 14.5mm, make it ideal for hydraulic systems requiring efficient fluid flow control. This valve is a versatile and durable solution for both consumer and institutional buyers.
Product Specifications
Specifications Ch1
50 mm
Specifications Diameter Pass
14.5 mm
Specifications G Thread Size
3/4
Specifications Jic 37 Thread
1 1/16-12
Specifications L1
90.9 mm
Specifications L2
16.0 mm
Specifications Material
Stainless Steel
Specifications M Tube Diameter
18 mm | 20 mm
Specifications Nominal Operating Pressure
350 bar
Specifications Pressure
Extra Light Duty | Heavy Duty | Light Duty
Specifications W Tube Diameter
3/4 in
